A steamy bathroom and a fogged mirror often point to a weak or poorly vented fan. Exhaust fan installation looks simple in online videos, yet only a small share of public guidance mentions Australian electrical or bushfire standards. The safe approach is to plan the fan, duct route and mounting first, then have a licensed electrician complete the electrical work.
This guide sets out the work in the order a professional installer checks it. It also shows where a replacement stops being a simple swap. Faze Electrical provides on-site residential and small-commercial electrical installation across Australia, including fan wiring, safety inspections and compliance checks.

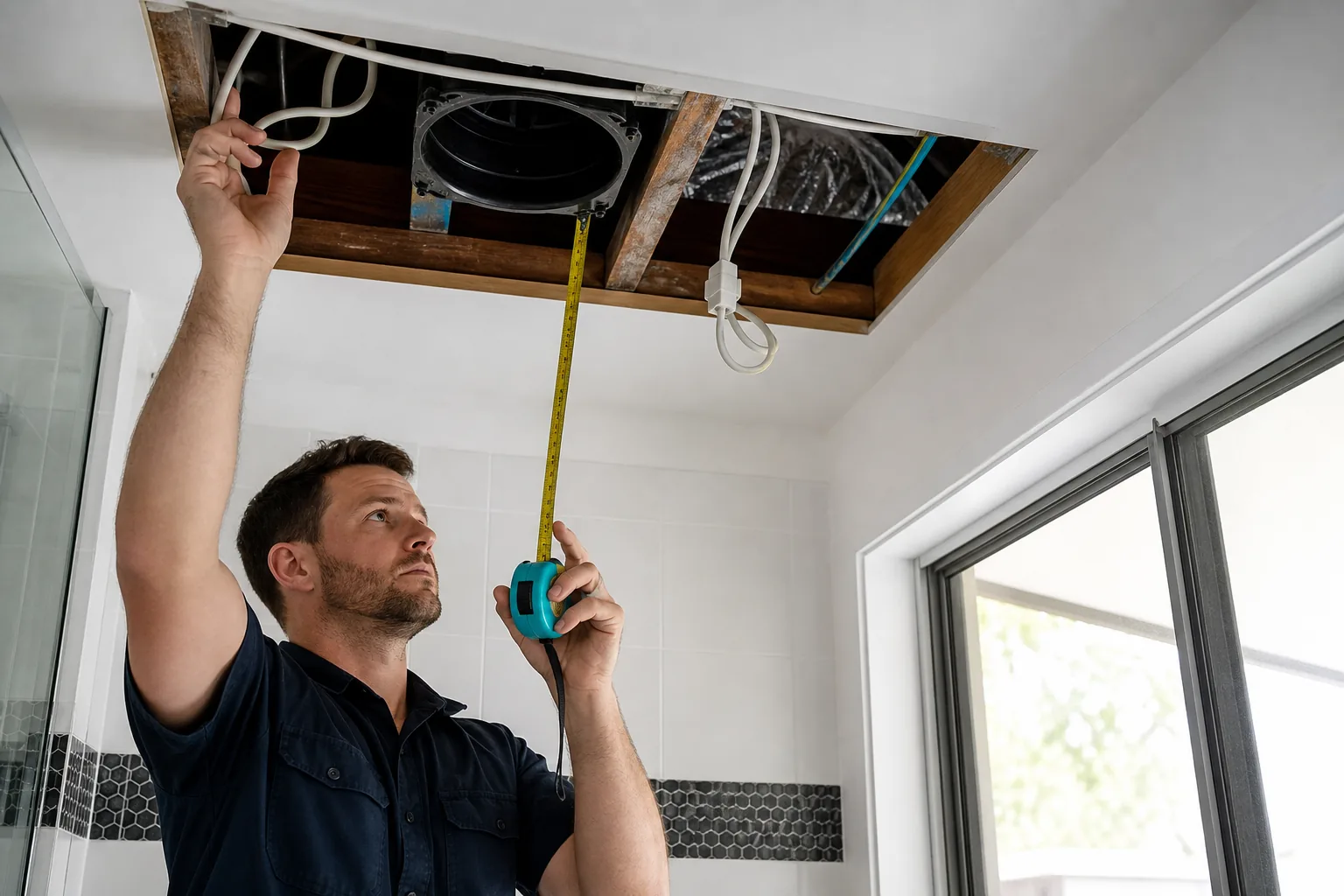

Step 1: Assess the Bathroom, Fan Size and Electrical Safety
Good exhaust fan installation starts with a site check, not with a drill. The installer first confirms the bathroom size, the ceiling structure, the existing duct route and the electrical supply.
Measure the room and old opening
Measure the bathroom floor area in square metres, then check the fan maker’s airflow guidance. Many fan guides use roughly one cubic foot per minute, or CFM, for each square foot as a starting point. Australian products may show airflow in litres per second instead, so the rating must be read from the actual product instructions.
Measure the old housing opening from below. Record its length, width and depth. Also check the duct diameter. A new fan may have a different housing size or connector, even when the grille looks similar.
A larger bathroom, a long duct run or several bends may need more airflow than a small room with a short straight duct. The fan must still match the duct size. For a clear explanation of sizing by room area, consult the manufacturer’s bathroom fan sizing guidance.
Compare noise and control options
CFM describes airflow. Sones describe noise. A lower sone rating means a quieter fan. A quiet fan can suit a main bathroom near a bedroom, while a louder model may be acceptable in a laundry or second bathroom.
Decide whether the room needs a fan only or a combined fan and light. A humidity sensor may help the fan run after a shower. A smart control may need different wiring. These features must be confirmed before the opening is cut.
Check the electrical setting
Identify the switch arrangement. A fan-only replacement may use the existing switched active. A light and fan combination can need a separate switch leg. The circuit may also need safety-switch or circuit-breaker protection, depending on the installation and the applicable requirements.
Australian electrical work must follow AS/NZS 3000. A property in a bushfire-prone area may also bring AS 3959 requirements into the assessment. The collected public guides reviewed for this article contained 42 items, yet only three mentioned an Australian compliance standard. That gap is a warning, not permission to ignore the rules.
Before work begins, confirm that the ceiling has no hidden cable, pipe or other obstruction. A stud sensor can help, but it cannot replace inspection from the roof space. If access is poor, wiring is old, or the fan sits above a shower, Faze Electrical should assess the job before any removal starts.
Basic tools may include:
- Phillips screwdriver and drill
- Stud sensor and suitable ladder
- Voltage tester
- Wire stripper and approved connectors
- Foil or HVAC tape
- Screws, clamps or approved fasteners
The key decision is simple: if the work involves new cable, a new switch, a wet-area circuit or uncertain wiring, it is electrical contracting work.
Step 2: Isolate Power and Remove the Existing Exhaust Fan
Safe exhaust fan installation begins with complete isolation. Switching off the bathroom wall switch is not enough because the cable can remain live.
Isolate and test
Switch off the correct circuit breaker at the switchboard. If the circuit is not clear, isolate the main supply only under the direction of a licensed electrician. Place a notice at the switchboard so another person does not restore power during the work.
Test the fan circuit with a suitable voltage tester. Test the instrument before checking the circuit, then test again on a known live source where the testing method requires it. A non-contact tester can help identify voltage, but it should not be treated as the only proof of safe isolation.
Remove the grille and motor
Pull the grille down carefully. Most grilles use spring clips, screws or a snap fit. Support the grille so it does not fall and damage the ceiling.
Remove the motor assembly if the design allows it. Some units plug into a receptacle inside the housing. Others have fixed wiring in a junction box. Do not pull the motor by its cable.
Disconnect the housing
Open the wiring compartment and note the existing arrangement before anything is disconnected. A photograph can help the licensed electrician understand the old layout, but it does not prove that the old wiring was correct.
Release the cable clamp or bushing. Disconnect the active, neutral and earth conductors with approved methods. Keep the conductors supported so they do not drop into the ceiling cavity.
Remove the screws or brackets that hold the housing to the joists. A housing fixed between joists may use side brackets. A unit fixed directly to timber may use screws through mounting flanges.
Detach the duct from the outlet. Old tape may have failed, and the duct may be brittle. Do not tear the ceiling opening wider unless the replacement housing requires it.
Inspect before fitting anything new
Look for heat marks, loose terminals, damaged insulation, water stains and signs of condensation. Check whether the existing duct ends outdoors or stops in the roof space. If the old duct discharged into the ceiling cavity, the route must be corrected rather than copied.
Stop if the cable insulation is damaged, the circuit cannot be identified or the housing is connected in a way the installer cannot verify. A clean removal is useful only when the next connection is safe.
Step 3: Position and Secure the New Fan Housing
Correct housing placement gives the fan a firm base and keeps the duct route short. Exhaust fan installation becomes harder when the housing is forced into a cramped joist bay.
Check the frame above the ceiling
Identify whether the roof space has ceiling joists, trusses or another frame type. The housing must fit between structural members without cutting or weakening them. Do not cut a truss or joist to make room for a larger fan.
For a new opening, position the fan close to the centre of the bathroom where the design permits. Keep it clear of lights, beams and other services. A fan close to the shower can capture moist air well, but its electrical suitability for that location must be checked.
When there is a gap beside the opening, install a suitable timber support or approved mounting bracket. The support must attach to sound structure. Drywall alone is not enough for a vibrating appliance.
Prepare the fan before lifting it
Remove the grille and motor if the manufacturer’s instructions require this. Fit the cable clamp or entry sleeve. Install the back-draft damper in the correct direction, with the flap able to open towards the discharge path.
Confirm the outlet direction before fixing the housing. Turning the outlet later can create a sharp bend in the duct. That adds resistance and may increase noise.
Fix the housing
Set the housing level with the ceiling surface. Align the outlet with the planned duct route. Mark the fixing points, drill pilot holes where needed, then use screws suited to the timber or bracket system.
Use enough fixings to stop movement. A loose housing can create a rattling sound even when the motor itself is quiet. Do not compress the ceiling lining so hard that it cracks or bows.
For an installation without roof access, use a mounting system designed for that purpose. Do not improvise with unsupported wire or a single screw in plasterboard.
Before moving on, the housing should be level, secure and reachable for the wiring and duct connections. If the outlet points towards a structural obstruction, reposition it now.
Readers planning other fixed electrical work can compare the mounting and safety checks used for ceiling fan installation by a licensed electrician. The appliances differ, but the need for sound support and safe wiring is similar.
Step 4: Complete the Wiring with Australian-Compliant Connections
The wiring stage is the point where a bathroom exhaust fan installation must be handed to a licensed electrician. Australian colour conventions help identify conductors, but colour alone cannot prove a cable’s function.
Confirm the supply and controls
The electrician checks the circuit arrangement and the manufacturer’s wiring diagram. The fan may have separate terminals for active, neutral and earth. A fan with a light or sensor may have extra control connections.
An existing single switch may not support separate fan and light control. Adding a second switch can require new cable and changes inside the wall. That work must be assessed as part of the complete circuit.
Use the correct entry and strain relief
Pass the house cable through the approved cable clamp or bushing. Tighten the clamp so the sheath is held without crushing the conductors. The cable entry must protect the insulation from the metal housing.
Leave enough conductor length for a neat connection inside the junction area. Do not leave loose cable outside the enclosure. Replace the junction cover once the connections are complete.
Make each connection secure
The electrician matches the conductors to the fan terminals or approved quick connectors shown in the instructions. Approved connectors must suit the conductor type and size. A connection must not rely on a loose twist or tape alone.
Where stranded fan conductors meet solid house conductors, the connection needs particular care. The conductors must sit correctly in the approved connector, with no bare copper exposed outside the connection point.
The earth connection must be continuous and secure. The active conductor must remain isolated until the enclosure is closed and the circuit is ready for testing.
Check wet-area requirements
A fan installed near a bath or shower may need a product approved for the location. The electrician also checks the circuit protection and the placement of switches and controls. Local rules and the current installation requirements take priority over a generic online diagram.
Do not energise the circuit with the junction cover removed. Do not use a household extension lead as a substitute for fixed wiring. When the new fan needs a new circuit, a switchboard change or altered protection, Faze Electrical can complete the electrical installation and safety inspection as one job.

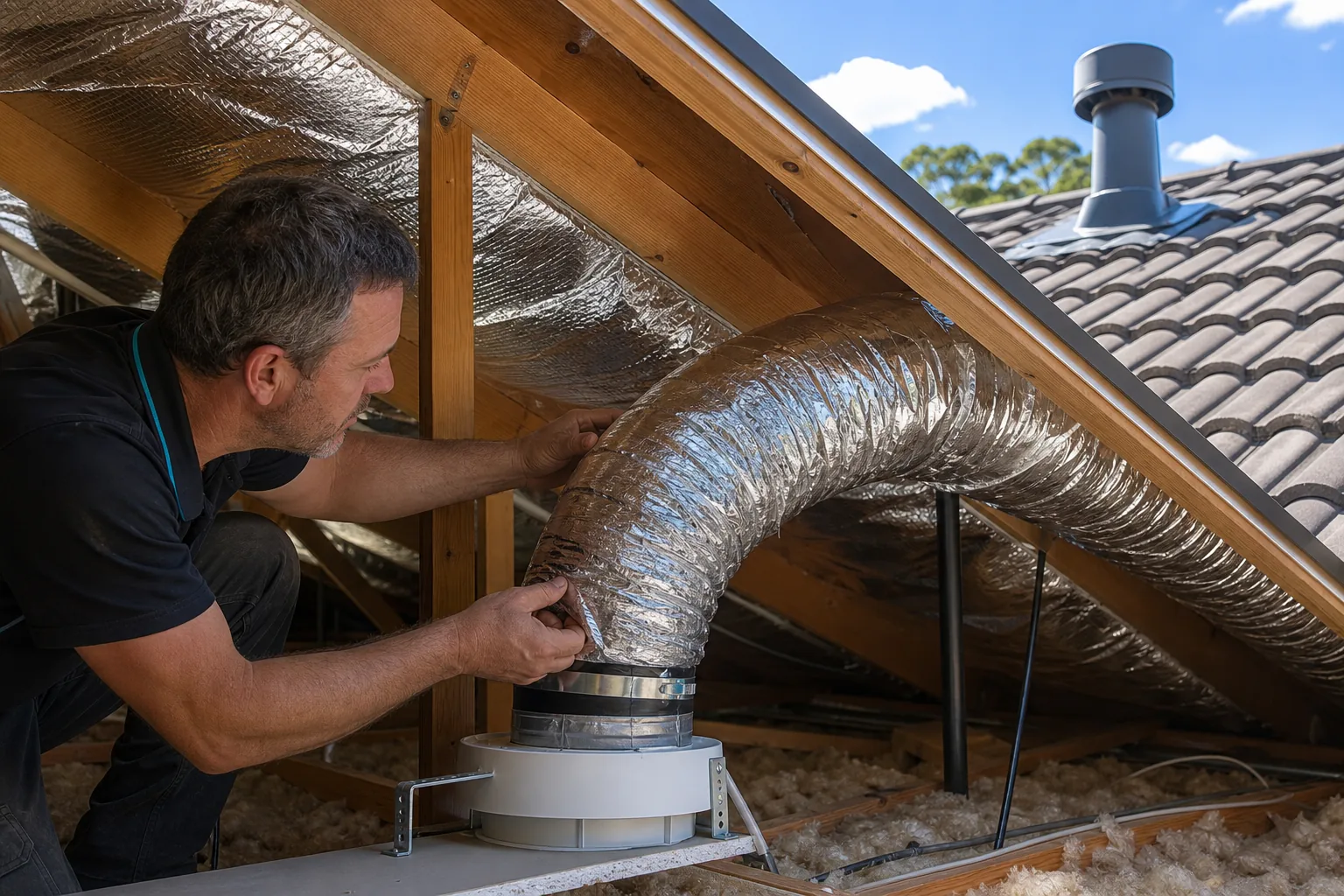

Step 5: Connect the Duct and Vent It Safely to the Exterior
Ducting determines where the moist air goes. A fan that ends in the roof cavity has failed, even if the motor runs quietly.
Plan the shortest suitable route
Choose an exterior discharge point through a side wall, gable wall or roof. A ground-floor bathroom may use a side-wall outlet. A bathroom below a roof space may need a route through the gable or roof, subject to the building and weatherproofing details.
Never discharge bathroom air into the attic, soffit cavity or ridge vent. Warm moist air can condense on cold roof surfaces. It can also return through nearby openings instead of leaving the building.
Keep the duct as straight as the building allows. Avoid crushing flexible duct. Sharp bends and narrow transitions increase resistance, so the fan moves less air and may become louder.
Attach and seal the duct
Slide the duct fully over the fan outlet or connector. Secure it with an approved clamp, tie or fixing method suited to the duct. Keep flexible connections taut. A slack flexible connection increases turbulence, noise and pressure loss.
Seal the joint with foil HVAC tape or the sealant specified for the duct system. Cloth tape is a poor choice for a long-term duct seal because heat and moisture can weaken its adhesive.
Where the roof space is cold, insulated ductwork can reduce condensation inside the duct. A back-draft damper can limit outside air moving back through the fan when it is off. Both choices must suit the fan and the planned route.
Fit the wall or roof outlet
A side-wall vent needs a clean opening, a suitable exterior grille and a weather-resistant seal. Fix the outlet firmly to the wall. Keep the flap free to open when the fan runs.
A roof route needs careful set-out between rafters. The installer marks the centre from inside, drills a pilot hole, then locates that point on the roof. The roof-cap opening must match the selected flashing system. Shingles or other roof materials are cut only as the roof-cap instructions specify.
The upper edge of the flashing must sit under the roof covering where required. The lower edge must shed water over the roof surface. Use profile-matched flashing, suitable sealant and fixings that resist vibration. The roof-mounted exhaust fan guidance from Schnap stresses a durable watertight seal around the penetration.
Roof work adds fall risk and can affect the building envelope. It is not a suitable task for an untrained installer. A leak may appear well after the fan is fitted, which makes poor flashing hard to detect at handover.
Before the grille is fitted, the duct should be supported, sealed and open to the exterior. The outlet should be visible from outside and clear of blockage.
Step 6: Fit the Grille, Test Airflow and Arrange Final Compliance Checks
The last stage of exhaust fan installation checks the whole system, not only the switch. The fan must run, move air outside and remain quiet without unsafe vibration.
Fit the motor and grille
Reconnect the motor only after the housing, wiring enclosure and duct are secure. Follow the fan instructions for the motor plug or terminal connection. Make sure the motor sits squarely in its mounts.
Fit the grille springs into their slots. Press the grille evenly against the ceiling. It should sit flat without gaps. If the grille does not sit correctly, check the housing position rather than forcing the cover.
Restore power and test the controls
The electrician closes all covers before restoring power. Turn the breaker on, then operate the wall switch. Test each control separately where the fan has a light, timer or humidity sensor.
Listen for scraping, rattling or a strong hum. A sudden vibration often points to a loose housing, a poorly supported duct or a motor that is not seated correctly. Switch the fan off if the noise is severe or the housing moves.
Check airflow inside and outside
Hold a tissue near the grille to confirm air is being drawn in. This is only a simple indication. It does not measure the fan’s rated airflow.
Check the exterior outlet while the fan runs. The flap should open, and air should discharge outside. If there is little flow, inspect the duct for a kink, blockage, loose joint or crushed section.
After a shower, observe whether condensation clears at a reasonable rate. A slow result can point to an undersized fan, a blocked duct or an outlet that does not open properly. It may also show that the fan is too far from the main moisture source.
Complete the compliance record
The licensed electrician should confirm the circuit, connections, protection and final operation. The property owner should keep the fan instructions and any electrical documentation with the home’s records.
Public installation guidance often explains the screws and tape but omits compliance. In the 42-item review used for this article, safety advice appeared in 15 items, while only three referred to AS/NZS 3000 or AS 3959. That is why a final check matters.
Faze Electrical can assess an existing fan, install a replacement or plan a new bathroom ventilation point. The Company also provides residential and small-commercial electrical work, including safety inspections and lighting changes. A professional handover is the right choice where the job includes new wiring, roof penetration or uncertain protection.
Frequently Asked Questions
Should a bathroom exhaust fan be installed by a licensed electrician in Australia?
Bathroom exhaust fan installation should be completed by a licensed electrician when it involves fixed wiring. Replacing a grille may be minor, but connecting a fan, changing a switch or altering a circuit is electrical work. Roof cutting and flashing also carry safety and water-entry risks, so a qualified installer should assess the full task.
What size exhaust fan does a bathroom need?
The right fan size depends on bathroom volume, use and duct resistance. A common starting point is about one CFM per square foot, but the product instructions and Australian airflow units must be checked. A long duct or several bends can reduce delivered airflow, so the rated size alone does not settle the choice.
Can a bathroom exhaust fan vent into the roof space?
A bathroom fan should not vent into the roof space. Moist air can condense on roof materials and contribute to mould or building damage. The duct should discharge through a suitable side wall, gable wall or roof outlet. The chosen route must include a sealed exterior termination and proper weather protection.
Do bathroom exhaust fans need a safety switch?
A bathroom fan may need safety-switch protection depending on the circuit, location and applicable Australian requirements. The answer cannot be confirmed from the fan model alone. A licensed electrician must assess the existing circuit, wet-area position and switchboard protection before connecting the appliance.
Why is my new exhaust fan still noisy?
A new fan may be noisy because the housing is loose, the duct is kinked or the flexible connection is slack. A sharp bend can also raise pressure and sound. Check the installation instructions and stop the fan if it vibrates strongly. The electrician should inspect the mounting, motor seating and duct route.
How much does exhaust fan installation cost?
There is no reliable single price for exhaust fan installation because the work changes with access, wiring, fan type, duct length and the exterior outlet. The reviewed guidance did not provide a typical cost range. A site assessment from Faze Electrical can separate the fan, electrical work, ducting and roof or wall work in the quotation.
For Australian homes, the safest recommendation is to treat the fan as part of the electrical and building system, not as a stand-alone appliance. Arrange a site assessment with Faze Electrical before buying the replacement fan, especially when new wiring, roof access or wet-area protection is involved.
