Queensland homes face a climate that most other states don’t. Humid summers, sharp heat spikes, and mild winters mean your air conditioning has to work smarter, not just harder. A properly zoned system lets you cool the rooms you’re using without running the whole house, and done right, it cuts running costs significantly. This guide walks through each step, from understanding what zoning actually does to working with a licensed installer.
Step 1: Understand What Air Conditioner Zoning Actually Means
Zoning divides your home into separate areas that each get individual temperature control. Instead of one thermostat running the entire house, you get independent control over each zone. A bedroom wing can stay cooler while the open-plan living area runs at a different setting. Unused rooms get shut off entirely.
In a ducted system, zoning works through motorised dampers installed inside the ductwork. Each damper opens or closes on demand, directing airflow only to active zones. A central control board reads signals from zone panels or thermostats and adjusts damper positions accordingly. Some systems use a single-zone thermostat per room; others use a master panel that controls every zone from one location.
There’s an important pressure consideration here. When multiple zones close simultaneously, the remaining open ductwork carries more airflow than it was designed for. A well-designed zoned system accounts for this by including a bypass duct or a variable-speed fan that adjusts output. Poor zoning design skips this step, which leads to noisy ducts, reduced coil efficiency, and premature wear on the compressor.
Split-system setups can also achieve a form of zoning, but they do it differently. Each indoor unit operates independently, so a bedroom split and a lounge split are already separate zones by nature. Faze Electrical’s split system installation guide covers capacity selection and placement considerations that apply directly to this multi-unit approach. Variable refrigerant volume systems take this further, connecting multiple indoor units to one outdoor compressor with individual control at each head, though the upfront cost is considerably higher than a standard ducted setup.
By the end of this step, you should understand the core mechanics: dampers, control boards, bypass management, and the difference between ducted zoning and multi-split arrangements. That foundation makes every decision in the steps ahead much clearer.
Step 2: Assess Your Home’s Layout and Cooling Needs

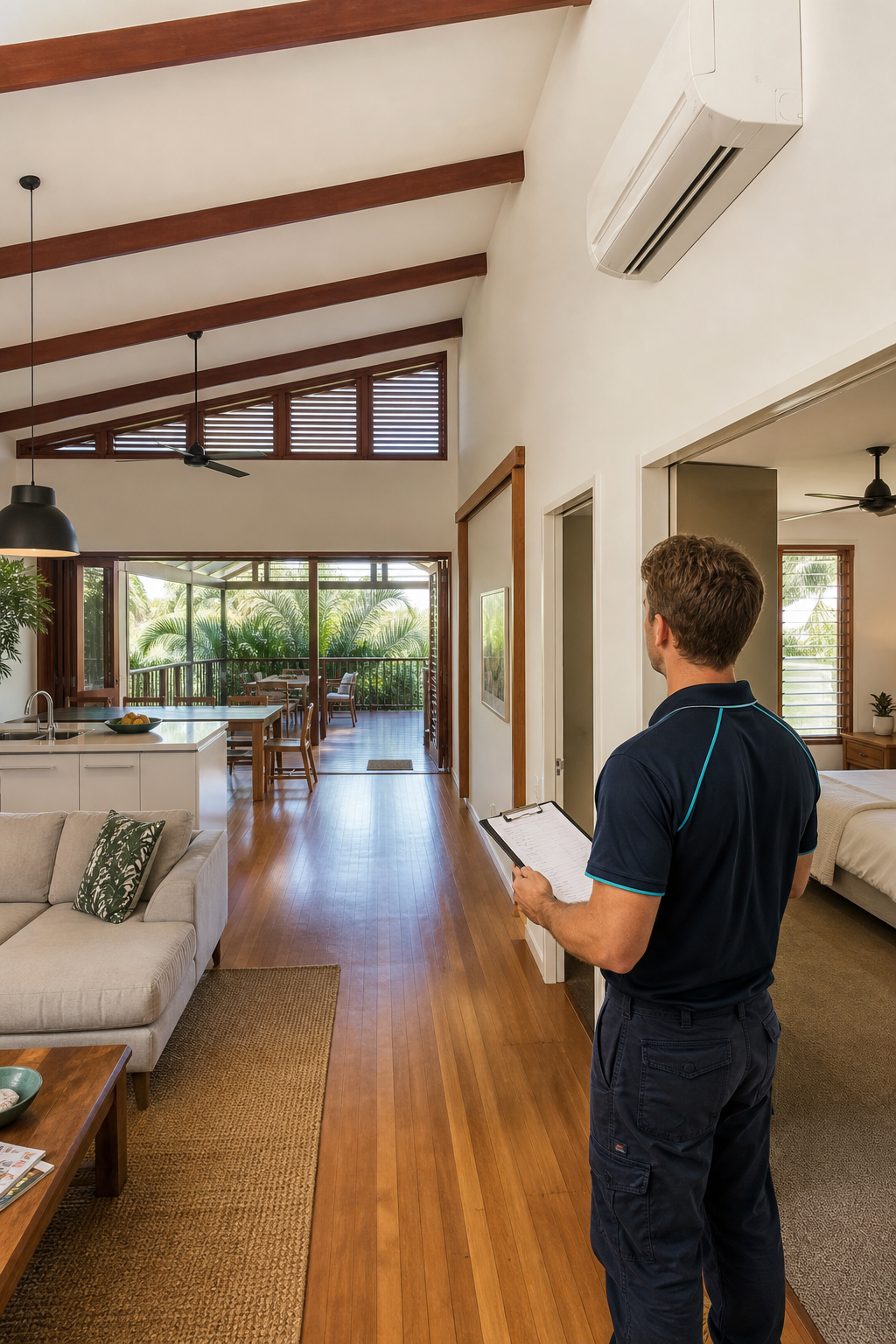

Walk through every room and ask one question: how often is this space occupied, and at what time of day? A home office used from 8am to 5pm has very different needs from a bedroom used only at night. This usage pattern is the real basis for zone planning, not just room size.
Queensland’s climate adds a specific layer to this assessment. High humidity in coastal areas means moisture control matters as much as temperature. A system that cools to the right temperature but doesn’t pull humidity out of the air will still feel uncomfortable. North-facing rooms and west-facing rooms heat up earlier and hold heat longer, so they often need to be treated as their own zone rather than grouped with a cooler part of the house.
Traditional Queenslander homes present a particular challenge. Their high ceilings and open verandah layouts mean heat stratification is significant. Hot air pools near the ceiling while foot-level temperatures stay lower. This changes both the duct outlet positions and the thermostat placement needed for accurate readings. Slab-on-ground homes behave differently again, with the concrete slab acting as a thermal mass that absorbs heat during the day and releases it slowly overnight.
Document each room with these details:
- Floor area in square metres
- Ceiling height
- Number of external walls and their orientation
- Window area and whether shading exists
- Typical hours of occupancy
- Any heat-generating appliances (ovens, home theatre equipment, server hardware)
This information feeds directly into a heat load calculation, which determines what capacity each zone actually needs. Guessing at capacity leads to either an undersized zone that runs constantly without reaching setpoint, or an oversized zone that short-cycles and fails to dehumidify properly. For more on short-cycling and its effects, Faze Electrical’s guide on preventing air conditioner short cycling explains the causes and how correct sizing prevents it.
Step 3: Choose the Right Zoning System for Queensland’s Climate
Queensland’s climate isn’t one thing. Coastal Brisbane and the Gold Coast deal with high humidity through summer. Inland areas like Toowoomba see greater temperature swings with cooler winters. The system type you choose should match what your specific location actually throws at you.
The table below outlines the main zoning approaches available to Queensland homeowners, with usable trade-offs for each.
For most Queensland homes in the 150m² to 300m² range, ducted zoning with motorised dampers is the usable choice. It works with a single outdoor unit, allows smart control integration, and handles humidity reasonably well when the system is correctly sized. The key is ensuring the control board supports static pressure management so the system doesn’t strain when zones close.
Smart zoning controllers are increasingly common in Queensland new builds and renovations. Dedicated smart zoning control systems integrate directly with ducted units and connect to smartphone apps and voice assistants. This lets occupants adjust zones remotely, which is useful for pre-cooling a home before returning from work during a 35-degree Brisbane afternoon. Faze Electrical installs and configures these smart zoning setups as part of a full ducted system installation, and the team can advise on which control platform suits your existing or planned unit brand.
Modern zone control has moved toward fully integrated approaches, with individual zone sensors feeding real-time data to central controllers rather than simple on/off damper logic. Queensland homeowners adopting this approach now are setting up systems that work with future smart-home platforms rather than against them.
Step 4: Understand Australian Wiring Rules and Compliance Requirements
Air conditioning installation in Queensland is licensed and regulated work. All electrical work on an air conditioning system must comply with the Australian Wiring Rules. This is not optional, and it is not something a homeowner can do themselves.
Any wiring from the switchboard to the air conditioning unit, including the dedicated circuit, isolator switch, and inter-unit cabling between indoor and outdoor units, must be completed by a licensed electrical contractor. In Queensland, that means holding a current electrical contractor licence issued by the relevant Queensland licensing authority. Work that doesn’t comply leaves the homeowner liable for insurance issues and can void the manufacturer’s warranty on the unit.
For zoned ducted systems specifically, the control wiring between zone panels, the control board, and individual damper actuators also falls under the wiring rules where it connects to mains-powered components. Low-voltage control wiring between panels and the air conditioning unit’s main board varies by manufacturer, but the connection to mains power always requires a licensed electrician.
Queensland also requires a certificate of compliance for electrical work. The licensed electrician performing the work issues this certificate once the installation passes inspection. Keep this document. It’s required for insurance claims, property sales, and any future warranty or service work that references the original installation date.
Planning a new home or a major renovation? Electrical pre-wiring for air conditioning zones is best coordinated before walls are closed. Electricians who specialise in new home pre-wiring follow the Australian Wiring Rules standard, ensuring compliance from the outset and avoiding costly rectification work once construction is complete.
Faze Electrical holds the appropriate Queensland licences for both electrical and refrigeration work, covering the full scope of a zoned air conditioning installation from switchboard circuit to final commissioning.
Step 5: Plan Your Zone Locations and Thermostat Placement
Zone boundaries should follow how people actually move through the house. Common groupings for Queensland homes include a sleeping zone (all bedrooms together), a living zone (open-plan kitchen, dining, and lounge), and sometimes a dedicated home office or media room zone if those spaces have distinct usage patterns.

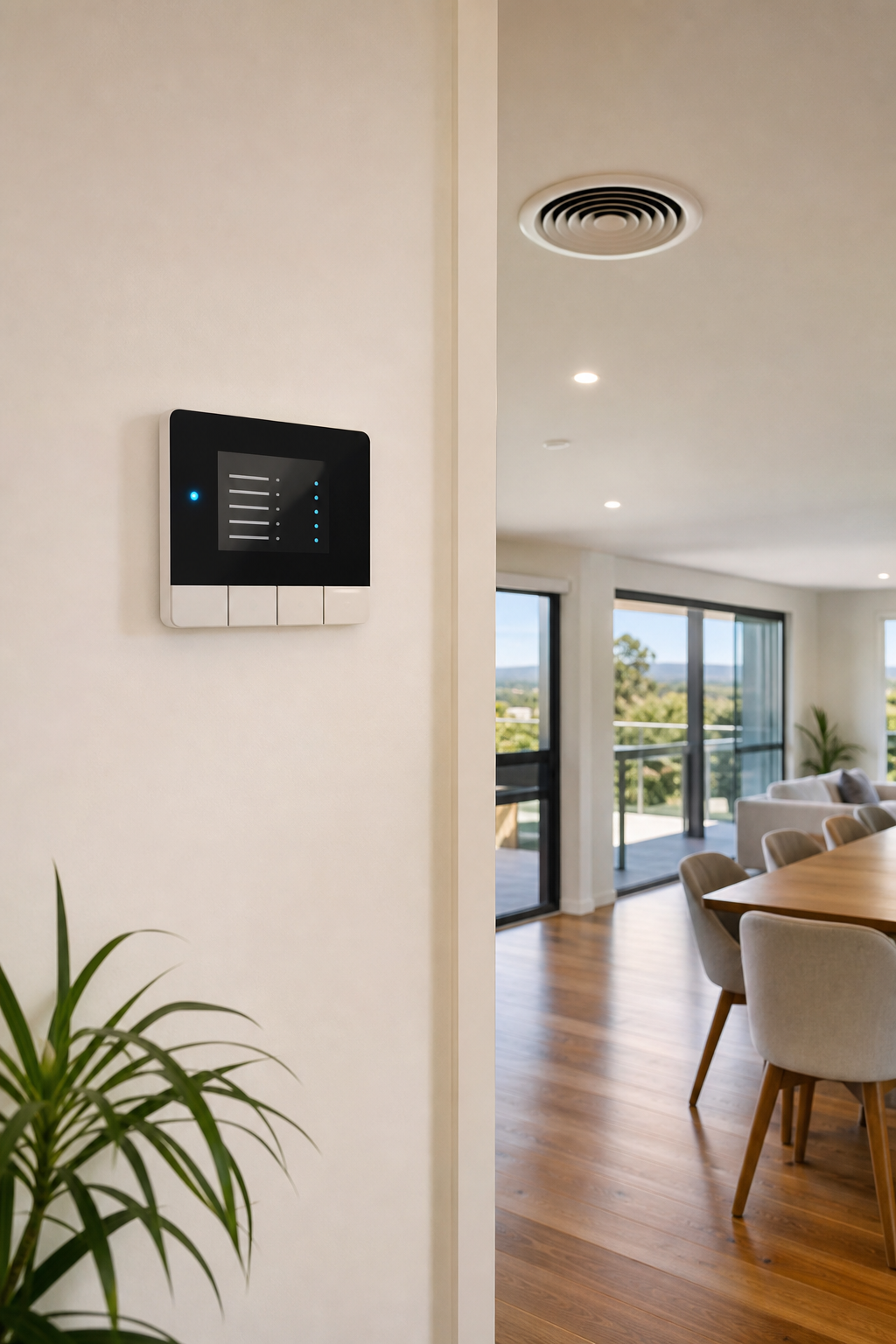

Thermostat and zone panel placement matters more than most homeowners expect. A temperature sensor on an external wall, near a window, or above a heat-generating appliance will read incorrectly. The sensor should sit on an internal wall, roughly 1.5 metres from the floor, away from direct sunlight and draughts. In a large open-plan space, consider whether a single sensor accurately represents the whole zone or whether a remote sensor is needed at a second point.
For ducted systems, plan damper locations based on where each zone’s ductwork branches. Every zone needs its own damper. A zone with multiple outlets shares one damper per branch, with the outlets sized to distribute airflow across the zone evenly. If one end of a long zone is consistently warmer than the other, the duct layout or outlet sizing needs adjustment.
Duct outlet positions also affect comfort directly. Ceiling outlets work well in most Queensland rooms, but in high-ceiling Queenslander-style homes, a ceiling outlet that blows cool air straight down can create a cold spot directly beneath it while the rest of the room stays warm. Angled or directional outlets help distribute air across a larger area, which is worth specifying at the planning stage rather than trying to correct after installation.
For homeowners interested in integrating zone control with broader smart home systems, Faze Electrical’s team can advise on compatible hardware. The smart home electrician services at Faze Electrical cover app-based zone controllers and integration with major ducted unit brands, letting you manage zones from your phone or a wall-mounted touchscreen.
Step 6: Work With a Licensed Electrician and Installer
Zoning a ducted system involves refrigeration work, electrical wiring, and mechanical ductwork. These are three distinct licence types in Queensland. Some contractors hold all three; others sub-contract the parts outside their licence scope. Before engaging anyone, confirm they hold a current Queensland Air Conditioning and Refrigeration (RAC) licence and an electrical contractor licence, or that their subcontractors do.
Get a written scope of work that specifies the number of zones, the damper type, the control system model, the outdoor unit capacity, and how static pressure management is handled. Vague quotes that list only the unit model and an installation fee leave too much room for misunderstandings about what’s actually included.
Ask specifically whether the quote includes:
- A heat load calculation for each zone
- The dedicated electrical circuit from the switchboard
- The isolator switch
- Zone control wiring and panel installation
- Commissioning and testing of each zone independently
- The Certificate of Compliance for electrical work
Commissioning is where problems surface. A thorough installer tests each zone individually, verifies damper operation, checks static pressure at full load, and confirms the control system responds correctly to each thermostat. If commissioning is rushed or skipped, pressure issues and control faults show up weeks later when you’re already in the middle of summer.
Faze Electrical handles the full scope of zoned air conditioning installation across Brisbane and surrounding Queensland areas. The team manages electrical, refrigeration, and control system work under one engagement, which simplifies the process and ensures compliance at every stage. For an idea of what electrical wiring work for air conditioning typically costs, the air conditioner wiring cost guide for Brisbane from Faze Electrical provides a useful reference point before requesting a formal quote.
FAQ
How many zones do I need for a typical Queensland home?
Most Queensland homes between 150m² and 250m² work well with two to four zones. A common split is sleeping areas as one zone, living and dining as another, and a home office or media room as a third if it has regular independent use. Homes with a second storey almost always benefit from at least one zone per floor, since heat rises and upper levels need different management from ground-floor spaces.
Can I add zoning to an existing ducted air conditioner?
Yes, in many cases. The existing ducted unit needs enough capacity headroom to support zoned operation, and the ductwork needs to accommodate damper installation at each branch. Older systems without a variable-speed fan may need a bypass duct added to manage static pressure when zones are closed. A licensed technician should assess the existing system before any retrofit begins, as not every older installation is suitable for zoning without additional work.
Is air conditioner zoning worth the cost in Queensland?
For homes with distinct usage patterns across different areas, yes. Cooling only the rooms in use rather than the whole house reduces runtime and energy draw. Queensland’s long summer season (often six months of meaningful cooling demand) means the savings accumulate quickly compared to states with shorter hot periods. The payback period depends on the system size, electricity tariff, and how many zones are inactive during typical use.
Do I need council approval to install a zoned ducted system in Queensland?
Generally, residential air conditioning installations in Queensland don’t require development approval, but they do require a Certificate of Compliance for electrical work issued by your licensed electrical contractor. If the outdoor unit is roof-mounted or the installation affects a heritage-listed property, additional requirements may apply. Check with your local council if the installation involves structural work or placement outside standard ground or wall-mount positions.
Can a zoned system connect to smart home platforms like Google Home or Alexa?
Yes. Compatible zoning controllers available for ducted systems can integrate with major smart home platforms and allow voice control, app-based zone management, and scheduling. The integration requires the control panel to be connected to your home Wi-Fi network. Installation of the smart controller is part of the electrical scope and should be completed by the same licensed electrician handling the broader system installation.
Conclusion
Zoning an air conditioning system in Queensland is a usable investment when the planning is done properly. The biggest mistakes come from skipping the heat load assessment, underestimating pressure management, or engaging a contractor who isn’t licensed across all required trade areas. Faze Electrical covers the full scope of zoned ducted and split system installations across Brisbane and surrounding areas, from the switchboard circuit through to smart zone controller commissioning. Reach out to the Faze Electrical team to get a site assessment and written quote for your home.
