When power drops or a breaker trips repeatedly, the problem is often hidden in the wiring. The following guide walks a qualified electrician through the exact process required to locate and fix an electrical fault while meeting Australian standards.
Step 1: Ensure Safety and Isolate Power
The first priority is to protect the person doing the work. The Australian Standard AS/NZS 3000 requires that each piece of equipment have an accessible isolation point. The electrician must turn off the main switch, apply a lock‑out tag‑out device and verify that the circuit is dead with a non‑contact voltage tester.
Personal protective equipment such as insulated gloves and safety glasses must be worn before any inspection begins. Documentation of the isolation point and the lock‑out method satisfies the WHS Act requirements for a safe workplace.
For a detailed explanation of isolation obligations, lines Trust Understanding Isolation Laws.
Faze Electrical follows this exact lock‑out procedure on every job, ensuring that the work environment remains hazard‑free.
Step 2: Visual Inspection & Identify Fault Type

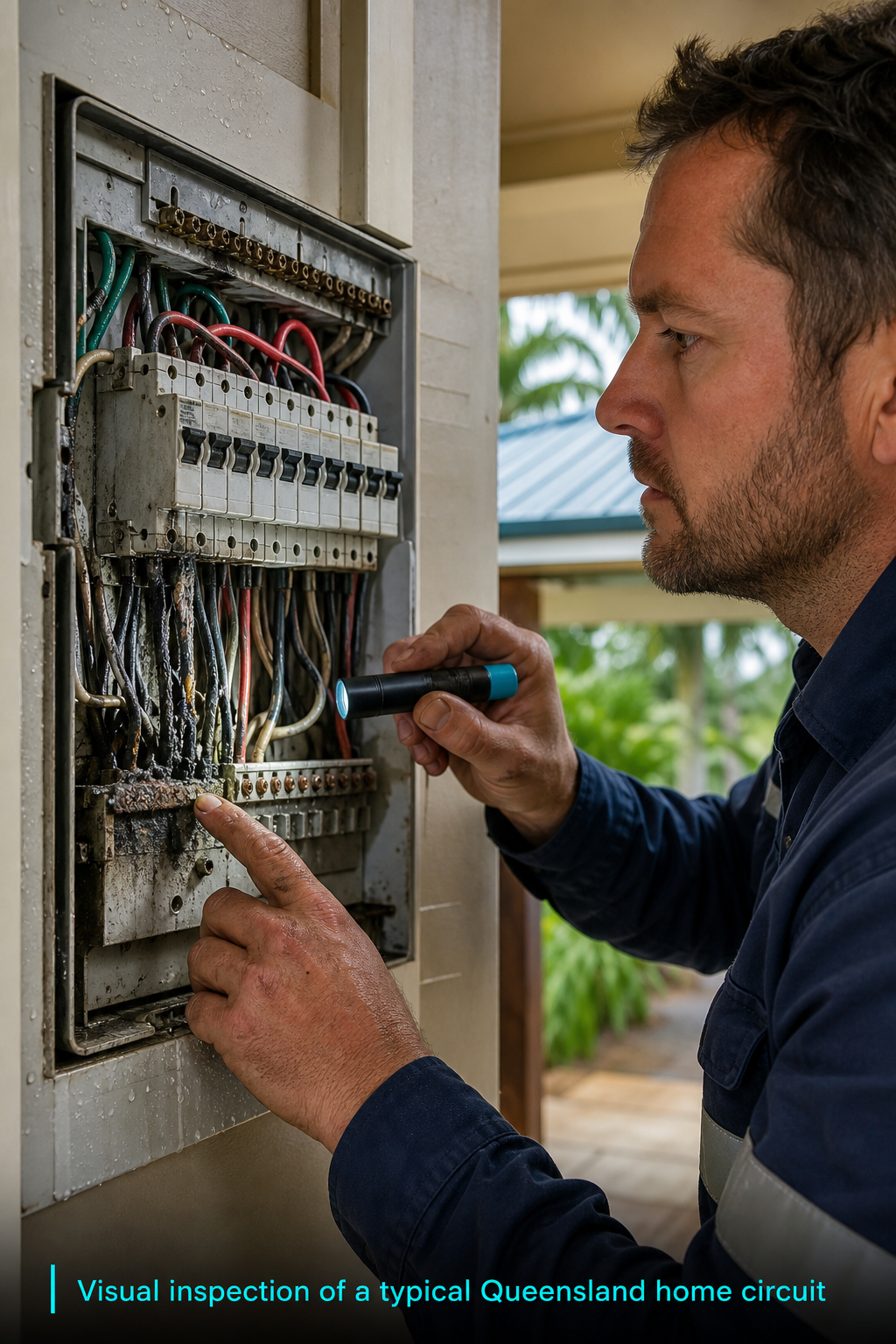

With power isolated, the electrician conducts a systematic visual inspection. Loose connections, burnt insulation, corroded terminals and signs of moisture are the most common visual clues. The inspection also includes checking that all earth connections are secure, as required by the Wiring Rules.
When signs of overload or aged panels are observed, a professional switchboard upgrade may be necessary to comply with the latest Australian standards.
Understanding the fault classification helps focus the investigation. A short circuit is a direct connection between live and neutral or earth, while an open‑circuit fault occurs when a conductor is broken. Ground faults involve unintended contact with earth and can cause dangerous touch voltages.
These definitions are summarised in publicly available references.
Faze Electrical’s inspectors record each finding on a fault‑report form, which aligns with industry defect‑recording requirements.
Step 3: Test with Multimeter and Detectors
After visual clues are noted, the electrician uses measurement tools to verify the fault. A digital multimeter set to AC voltage checks for residual voltage on isolated circuits. Continuity testing confirms that conductors are intact, while resistance measurements identify high‑impedance connections.
Non‑contact voltage detectors provide a quick safety check before any live testing. They alert the operator to phantom voltages that may appear on disconnected wires due to capacitive coupling.
The industry‑standard detector description is available from the manufacturer’s documentation.
Faze Electrical equips its crews with multimeters that meet CAT IV 600 V ratings, ensuring accurate readings in high‑risk environments.
Step 4: Trace and Repair Using Cable Tracing Tool

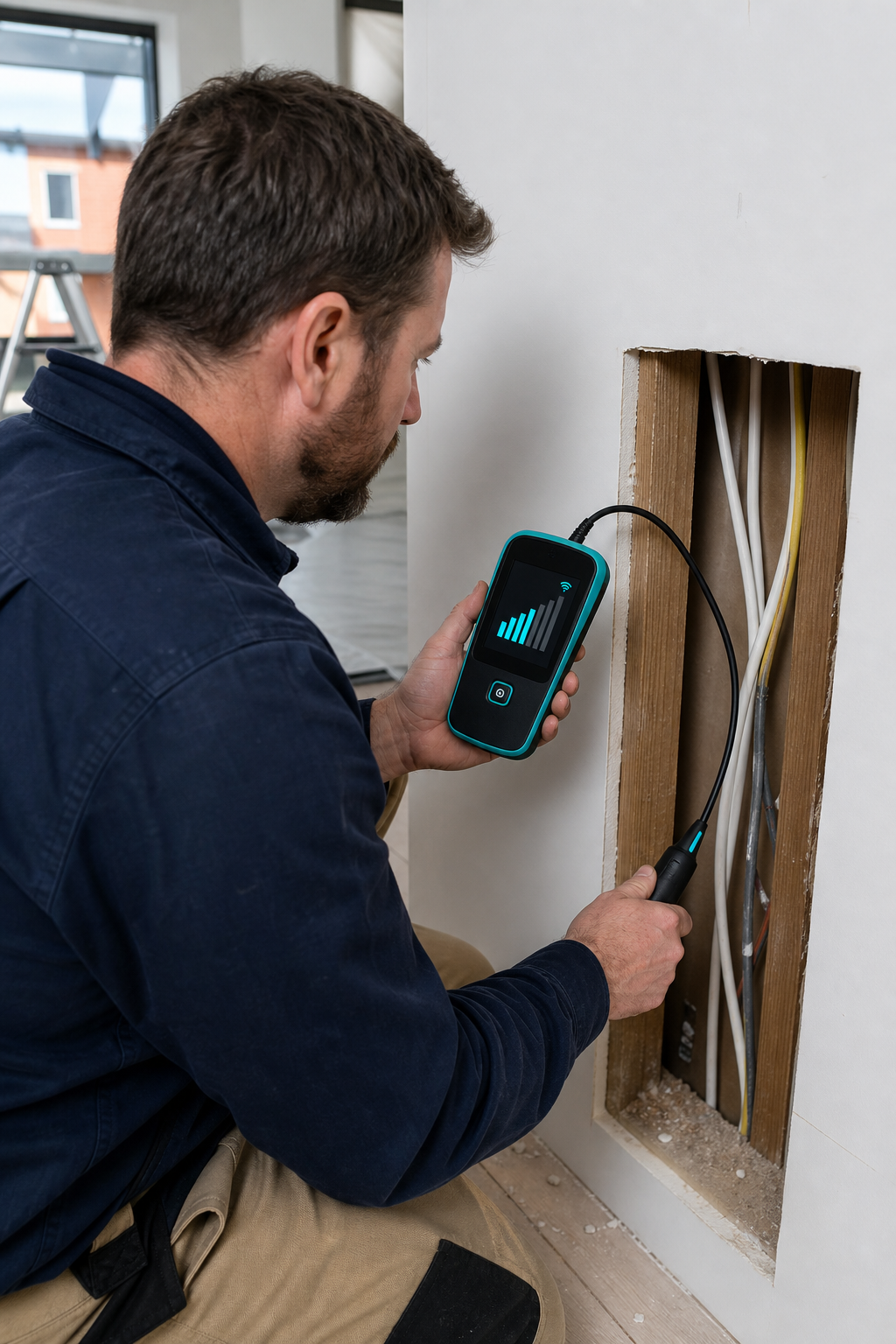

When the fault location is not obvious, a cable tracing tool is employed. The transmitter injects a low‑frequency signal onto the suspected conductor; the receiver unit then follows the signal strength to pinpoint the exact segment of cable that is compromised.
Modern tracers can work on live circuits without disrupting service, making them ideal for commercial premises where downtime must be minimised. Once the faulty segment is identified, the electrician isolates it, removes damaged cable and installs new wiring that complies with AS/NZS 3000.
All repairs are tested again with the multimeter and voltage detector to confirm that the circuit is safe to re‑energise.
FAQ
What is the first thing to do when a circuit keeps tripping?
The first action is to isolate the power and lock it out. This stops any current flow and protects the electrician while the fault is investigated.
Can I use a regular multimeter to test for earth faults?
A standard multimeter can measure resistance and continuity, but it does not detect low‑level leakage currents. A dedicated earth‑fault tester or a non‑contact voltage detector is required for that purpose.
How often should I have a qualified electrician inspect my home wiring?
Routine inspections are recommended every five years for residential properties, or sooner if you notice frequent breaker trips, flickering lights or a burning smell.
What tools are essential for locating a hidden short circuit?
The core tools are a digital multimeter, a non‑contact voltage detector and a cable locating device. Together they allow the electrician to confirm isolation, detect voltage presence and follow the conductor to the fault.
Why is it important to follow AS/NZS 3000 when repairing faults?
Compliance with AS/NZS 3000 ensures that all repairs meet national safety standards, reduces the risk of future failures and satisfies legal requirements for electrical work in Australia.
Conclusion
Following this four‑step process, secure isolation, thorough visual inspection, precise testing, and targeted tracing, provides a reliable path to locate and repair any electrical fault. For homeowners or property managers who need a professional assessment, Faze Electrical offers a full on‑site fault‑finding service that aligns with the Wiring Rules. Read the guide on signs you need to rewire your house to learn when a complete upgrade may be the safest option.
