Press a button. Hear a clunk. That’s most of the test. A working safety switch should cut power to its circuit within milliseconds of a fault, and there’s a quick way to confirm it still does that. Here are the exact steps to test a safety switch at home, what each result means, and the point where the job stops being a homeowner’s and becomes a licensed electrician’s. For a deeper look at how these devices differ from fuses, the guide on safety switch vs circuit breaker options is worth a read first.

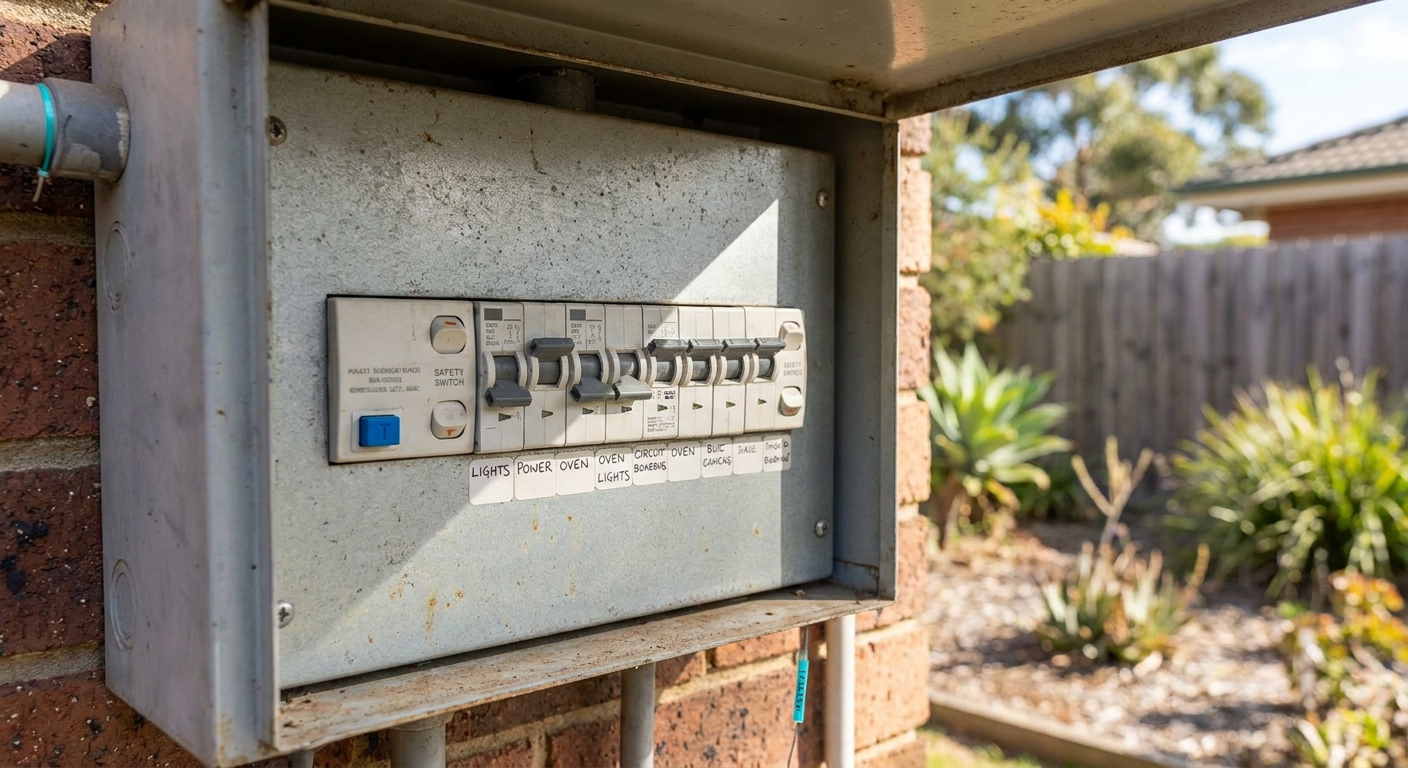

Step 1: Locate Your Safety Switch on the Switchboard
Goal: find every safety switch in your switchboard before you touch anything. You can’t test a device you can’t see.
Open your meter box or switchboard. Look for one or more buttons marked with a ‘T’ or the word ‘test’. As Energy Safe Victoria explains in their guidance, the button can be any colour, shape, or size, so look carefully because there’s often more than one.
A safety switch is not the same as a circuit breaker. A safety switch, also called a residual current device or RCD, watches the balance of current in the live and neutral wires and cuts power when it detects a leak, like current passing through a person. A circuit breaker protects wiring from overload and short circuits. The two do different jobs, and a home can have both side by side on the same board.
Australian wiring rules under AS/NZS 3000 require RCDs on new residential installations covering power point and lighting circuits. Many older homes only have partial coverage, or none at all. If your board is full of fuses and breakers but no ‘T’ button, you likely have no safety switch fitted, and that’s a job for a licensed electrician.
Step 2: Essential Safety Precautions Before You Test
Goal: warn the household and protect anything sensitive before the power drops. Testing cuts the electricity to whole circuits, so a little prep saves a lot of grief.
Tell everyone in the home you’re about to do it. Turning the power off without warning while someone is using a computer or recording a program is going to annoy people fast. Save open files first.
Shut down computers and other devices that don’t like sudden power loss. Fridges and air conditioners are fine to lose power, but they shouldn’t be switched straight back on, more on that in Step 5.
Only open the meter box if it’s in good condition and dry. If the board looks corroded, water-damaged, or has exposed wiring, stop. Don’t test it yourself. The press-button test is the only DIY-safe action here. Never open the cover, never poke a multimeter into the board, and never try to bypass a safety switch. Bypassing one removes the very protection that keeps you from a fatal shock.
Wear dry shoes and keep your hands dry. The built-in test is designed to be done with the cover closed, so you’re only ever pressing an external button. That’s the whole point of testing a safety switch the safe way: no contact with live parts.

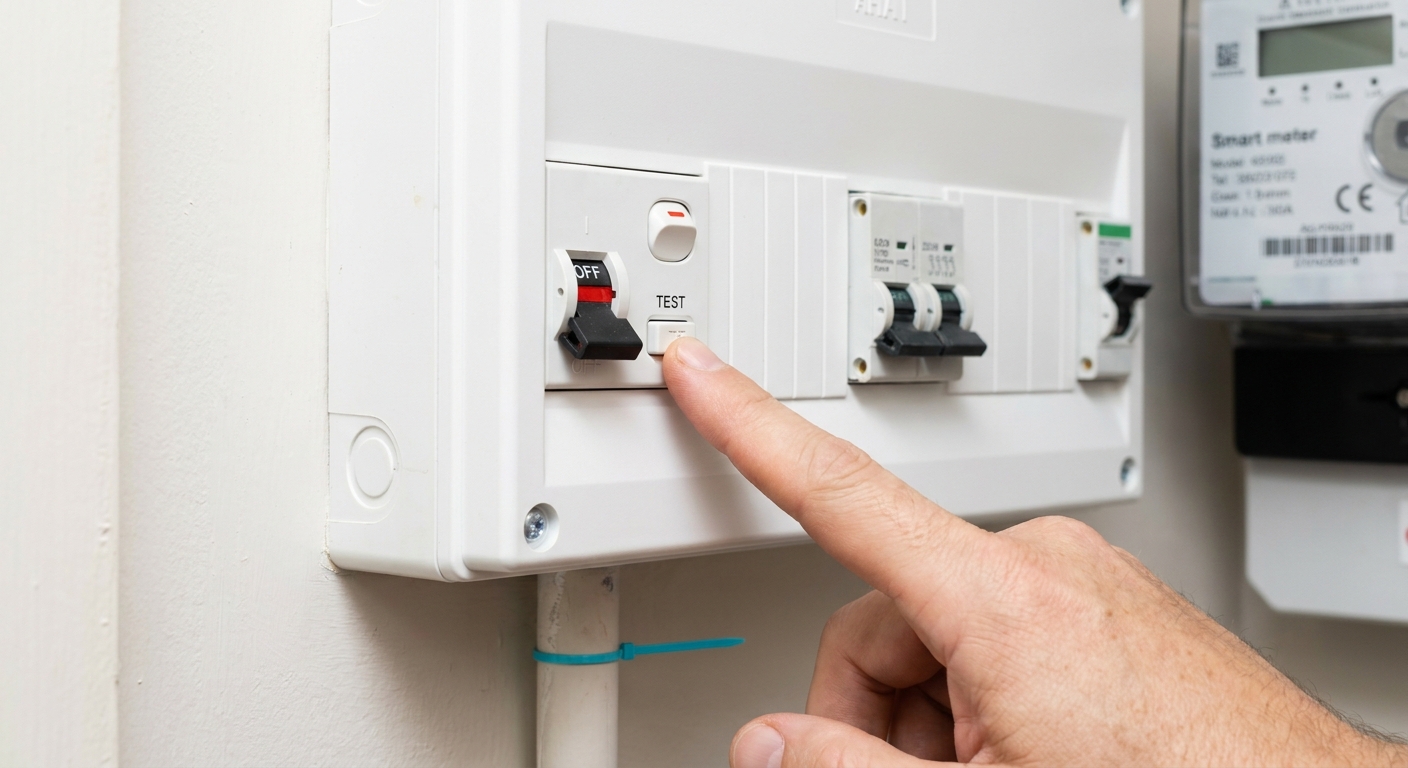

Step 3: Press the Built-In Test Button
Goal: confirm the switch trips when you press its test button. This is the heart of how to test a safety switch at home.
Press the ‘T’ button on the first safety switch firmly. The switch should snap to the OFF position straight away, and you’ll usually hear a clunk. Test each switch one at a time so you can tell which circuits each one protects.
The test button creates a small, deliberate imbalance inside the device to mimic a real fault. The residual-current device should react to that imbalance in milliseconds. Most trip very quickly once the imbalance is detected, cutting power in a fraction of a second.
A slow or stuck switch is a clear warning sign. If the flip to OFF isn’t immediate, or the switch won’t stay ON after you reset it, you call a licensed electrical contractor. Don’t keep using a sluggish switch and hope it sorts itself out.
If you can’t reach the button easily, or your meter box is in poor shape, don’t force it. A booked safety inspection covers the full test sequence properly. Faze Electrical runs RCD testing as part of its electrical safety audits, which is the right path if anything about the board looks off.
By now you should have pressed every test button and watched each switch drop to OFF.
Step 4: Interpreting the Results , Did It Trip?
Goal: work out from the result whether each safety switch passed or failed. The clunk and the dead circuit are your two main clues.
Press the button and watch and listen. Three outcomes are possible.
- It tripped: the switch flicked to OFF, you heard a clunk, and the lights or appliances on that circuit went dead. That’s a pass.
- Nothing happened: no clunk, no switch movement, and power stayed on. That switch has failed.
- It tripped but won’t reset: the switch went OFF but won’t stay ON when you push it back up. That points to a fault on the circuit or a faulty switch.
Confirm the trip by checking inside the home. Walk to a light or power point on that circuit and check it’s dead. If the test button moved the switch but the lights stayed on, something is wrong, the switch may be wired to a different circuit than you think, or the protection isn’t working.
A failed safety switch leaves you with no shock protection on that circuit. If the switch didn’t make a sound and didn’t cut power to anything, it has failed, and you contact an electrician to have it checked immediately. Until it’s fixed, treat that circuit as unprotected.
Don’t confuse a tripping safety switch with a tripping breaker either. If a switch keeps tripping the moment you reset it, the issue is usually a faulty appliance leaking current, common with dishwashers and washing machines near water. The steps in how to reset a tripped circuit breaker help you tell a one-off nuisance trip from a real fault.
Step 5: Reset the Switch and Confirm Normal Operation
Goal: restore power and check every circuit comes back to life. A switch that won’t reset is itself a failed test.
Once you’re sure the power is off, reset each safety switch by lifting or twisting it back to the ON position. As Australian electricians make on site: a switch left in the OFF position gives no protection, so resetting it properly matters.
Wait two to three minutes before switching fridges and air conditioners back on. A compressor that restarts instantly after a sudden cut can be damaged by the surge. Give it a moment to settle.
Walk the home and confirm lights, power points, and appliances on each circuit are working again. If everything’s back on and the switches held their ON position, the test is done and your safety switches are doing their job.
If a switch trips again the second you reset it, or refuses to stay ON, stop resetting it. Repeatedly forcing a switch that keeps tripping won’t fix the underlying fault and can hide a genuine hazard. That’s the signal to book a licensed electrician rather than keep wrestling with it.
How Often Should You Test, and What the Rules Require
Test your safety switches regularly, the recommended interval depends on who you ask, but every three months is the common standard in Queensland. A handy reminder is to test when your quarterly power bill or rates notice arrives.
Different sources set slightly different intervals. Here’s how the common guidance stacks up for a homeowner or landlord deciding on a schedule.
For rental properties, landlords in Queensland carry electrical safety obligations, including the upkeep of safety switches and other fittings. A press-button check by a tenant is good practice, but a failed switch is always a licensed contractor’s job to replace.
The legal side is worth flagging. There’s a quiet compliance gap in a lot of online testing advice. Many guides list the steps but skip the part where the trip time has to meet the AS/NZS 3000 limit, and most homeowners have no way to measure that with a button press alone. A full compliance test uses calibrated equipment to confirm the switch trips inside 300 milliseconds and reacts at the rated leakage current. That’s why DIY testing in Queensland stops at the button, and proper verification belongs to a licensed electrician.
If your switchboard is old or you’re unsure whether your RCDs cover every circuit, a professional inspection is the sensible move. A worn board sometimes needs more than testing, and the guide on what a switchboard upgrade involves explains when replacement beats repair. For tradies running their own inspection schedules, dedicated inspection and audit software can log test results and keep compliance reporting tidy across multiple sites.
Frequently Asked Questions
How do I know if my safety switch is working?
Press the ‘T’ or test button on the switch. A working safety switch trips to the OFF position within milliseconds, usually with an audible clunk, and cuts power to its circuit. Check a light or power point on that circuit is dead to confirm. If nothing happens, or the switch won’t reset, it has failed and needs a licensed electrician.
How often should I test my safety switch?
Test your safety switch every three months in Queensland, or follow the manufacturer’s instructions if they ask for more frequent checks. A simple reminder is to test it each time your quarterly power bill or rates notice arrives. Landlords have separate obligations and may need testing before each new tenancy under state tenancy rules.
What happens if my safety switch doesn’t trip when I test it?
If the safety switch doesn’t trip, doesn’t clunk, and doesn’t cut power, it has failed and offers no shock protection on that circuit. Don’t keep using the circuit as if it’s protected. Contact a licensed electrician immediately to have the switch checked and replaced. Testing it yourself again won’t fix a faulty unit.
Can I test a safety switch myself or do I need an electrician?
You can safely press the built-in test button yourself with the switchboard cover closed. That’s the only DIY-safe test. Measuring the actual trip time against the 300-millisecond limit, opening the board, or replacing a failed switch all require a licensed electrician. In Queensland, DIY electrical work beyond the button press is prohibited.
Why does my safety switch keep tripping after I reset it?
A safety switch that trips right after resetting usually means a real fault on the circuit, often a faulty appliance leaking current. Dishwashers, washing machines, and outdoor equipment near water are common culprits. Unplug appliances on that circuit one at a time and reset. If it keeps tripping with nothing plugged in, call a licensed electrician.
Conclusion
Make the press-button test a quarterly habit, press the ‘T’, listen for the clunk, confirm the circuit goes dead, then reset and check everything comes back on. If any switch fails to trip or won’t stay reset, stop and book a licensed electrician. Faze Electrical handles RCD testing and safety inspections across the region, so if your board looks old or your test threw a result you didn’t expect, arrange a professional check rather than gamble on unprotected circuits.
