Safety switches and circuit breakers both live in your switchboard, but they do very different jobs. Circuit breakers protect your home’s wiring from overloads and short circuits, while safety switches protect people from electric shock. Knowing the difference can save your property or even a life. Below are the key options for Australian homes, starting with the professional assessment you need most.
1. Faze Electrical (Our Top Pick) , Professional Installation & Assessment

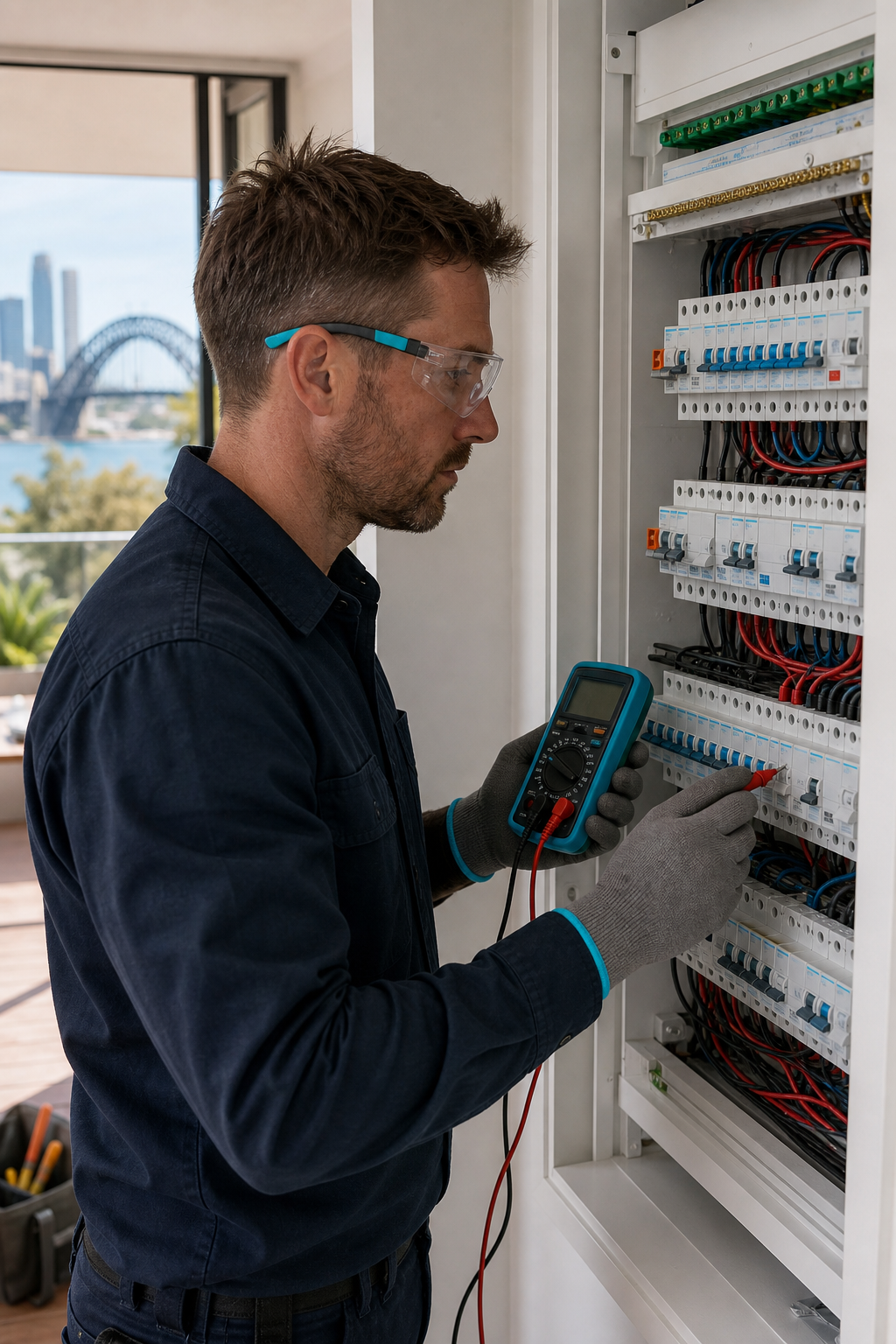

Faze Electrical provides on‑site electrical contracting services across Australia, including residential installations, commercial maintenance, emergency repairs, and safety inspections. For homeowners, the first step is a professional assessment to determine the right combination of safety switches, circuit breakers, and RCBOs that comply with AS/NZS 3000. Faze Electrical’s licensed electricians can test existing devices, upgrade switchboards, and ensure every circuit is properly protected.
Key Takeaway: A professional inspection by Faze Electrical ensures your switchboard meets current safety standards and that you have the correct mix of devices for both people and property protection.
2. Safety Switch (RCD)
A residual current device (RCD), commonly called a safety switch, detects earth‑leakage currents as small as 30 mA and disconnects the circuit within milliseconds. These devices are designed to protect people from electric shock, not to prevent overloads or short circuits. Australian regulations require RCDs on all power and lighting circuits in new homes, and landlords must ensure rental properties have them installed. Safety switches must be tested every three months using the ‘T’ test button.
3. Circuit Breaker , The Overload Protector
Miniature circuit breakers (MCBs) are the workhorses of your switchboard. They trip when current exceeds a safe level due to an overload or short circuit, preventing wiring from overheating and causing a fire. Over time, circuit breakers can wear out; our essential guide to recognizing circuit breaker failure signs can help you identify when a replacement is needed. MCBs are resettable and come in different trip characteristics (B, C, D) for various load types. However, they offer no protection against electric shock — that is the role of a safety switch.

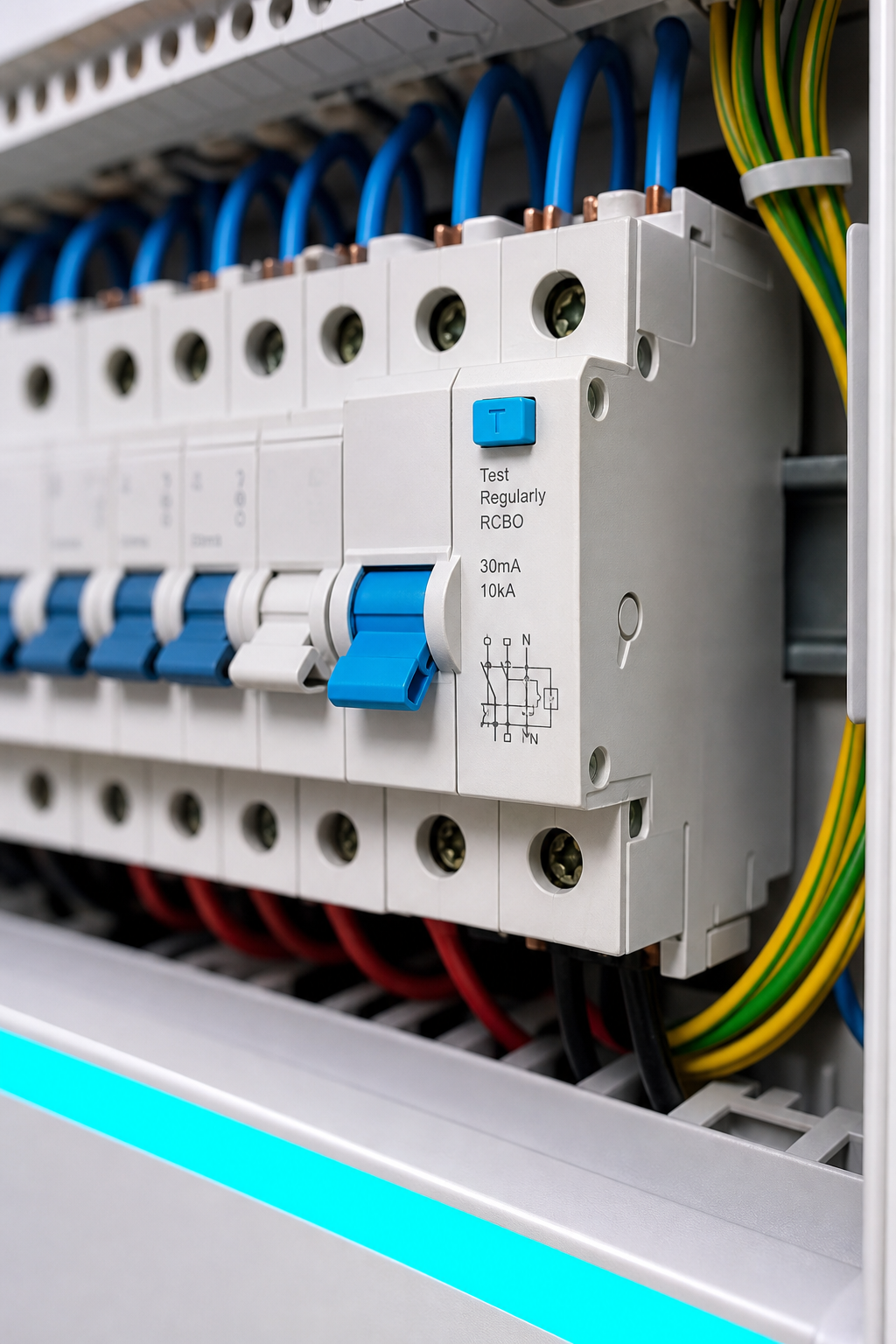

4. RCBO , The Two‑in‑One Solution
An RCBO combines the functions of a safety switch and a circuit breaker in a single device. It provides both earth‑leakage protection (like an RCD) and overcurrent/short‑circuit protection (like an MCB). A combined circuit‑breaker and RCD can be installed where space in the switchboard is limited. RCBOs are the most efficient choice for new installations, as each circuit gets independent protection — if one trips, only that circuit loses power, not the whole house.
5. Safety Switch for Sensitive Electronics
These safety switches detect both sinusoidal alternating currents and pulsating direct currents that can occur in electronics, variable‑speed drives, and modern appliances. They are required for circuits supplying equipment like washing machines, induction cooktops, and some LED lighting. This type of protection is the minimum standard for many residential circuits under AS/NZS 3000, offering broader protection than older, basic safety switches.
6. Advanced Residual Current Device , For Industrial and Commercial Use
Advanced residual current devices handle the most complex waveforms, including smooth DC, pulsating DC, and high‑frequency AC. They are used in industrial settings with inverters, UPS systems, and photovoltaic installations. For commercial kitchens, workshops, or solar‑powered homes, this type provides the highest level of residual current protection.
7. Residual Current Device (RCD)
Residual Current Devices (RCDs) detect leakage currents and provide protection against electric shock. Older RCD designs only detect sinusoidal alternating currents, the standard household waveform. They are being phased out in many jurisdictions because they may not detect pulsating DC fault currents from modern electronics. While still compliant in some older installations, it is recommended to use modern RCDs for circuits with smart appliances.
8. Fuses , The Traditional Alternative
Fuses provide overcurrent protection by melting a thin wire when current exceeds a rated value. Unlike circuit breakers, they are single‑use and must be replaced after blowing. Fuses are cheaper initially but less convenient. Modern Australian switchboards rarely use fuses for main circuits, though they still appear in older homes and some appliances. For safety, upgrading to resettable circuit breakers and RCDs is strongly recommended.
9. Voltage Surge Protection , For Voltage Spikes
A voltage surge protection device limits transient overvoltages caused by lightning or grid switching. It does not replace a circuit breaker or safety switch. These devices clamp voltage surges to protect sensitive electronics. They are installed at the main switchboard and can be integrated into some circuit breakers. Not mandatory in all homes, but recommended for areas with frequent storms.
10. Main Switch , The Disconnect Point
The main switch is a manual isolation device that cuts power to the entire property. It is not a protective device like a circuit breaker or RCD; it simply allows electricians to de‑energise the building for safe maintenance. Under AS/NZS 3000, the main switch must be clearly labelled and easily accessible. It should be used only as a disconnect, not as a regular on/off switch.
How to Choose the Right Protective Device for Your Home
Selecting the correct devices depends on the circuit type, load profile, and age of your switchboard. The table below summarises the key recommendations for typical home circuits.
For existing homes, a safety inspection by Faze Electrical can identify missing or outdated protection. Pricing for upgrades, such as replacing a fuse with a circuit breaker, is transparent. Property managers should ensure rental properties meet current regulations for compliance.
Key Takeaway: For complete protection, use RCBOs for new circuits and ensure every circuit has both overload and earth‑leakage protection. Contact Faze Electrical for a code‑compliant upgrade.
Frequently Asked Questions
What is the difference between a safety switch and a circuit breaker?
A safety switch (RCD) protects people from electric shock by detecting earth leakage and disconnecting power within milliseconds. A circuit breaker protects wiring and appliances from overloads and short circuits. They serve different purposes and both are needed for full protection.
Can a circuit breaker replace a safety switch?
No. A circuit breaker does not detect small leakage currents that cause electrocution. Only a safety switch or RCBO can provide the 30 mA trip threshold needed to protect a person. They must be used together or as a combined RCBO.
How often should I test my safety switch?
Every three months. Press the ‘T’ test button on each RCD. If it does not trip immediately or fails to reset, call a licensed electrician like Faze Electrical to replace it.
Are RCDs required in rental properties?
Yes. RCDs are required on all power and lighting circuits in rental homes. Landlords should have them tested regularly. Faze Electrical can perform compliance testing and installation.
What is an RCBO and should I install one?
An RCBO combines a safety switch and circuit breaker in one unit. It saves space and ensures each circuit has independent protection. It is the preferred choice for new switchboard installations in Australia.
Conclusion
The right combination of safety switches, circuit breakers, and RCBOs is essential for a safe home. Start with a professional assessment from Faze Electrical to ensure your switchboard meets AS/NZS 3000 standards. Then, upgrade outdated devices to provide complete protection for your family and property. Explore Faze Electrical’s full range of services to schedule your inspection today.
