Replacing or installing a light switch in an Australian home can feel risky, but following the right steps keeps everyone safe. This guide walks through every action the electrician takes, from picking the right switch to confirming it works under the wiring rules. Follow each step to finish the job confidently and meet AS/NZS 3000.
Step 1: Identify the Switch Type and Plan the Job
The first decision is the kind of switch required. A single‑pole switch controls one fixture from one location. A multi-location arrangement allows control from two or more points, common in hallways. Brightness-control switches adjust brightness, while smart switches add remote or voice control. Selecting the correct type avoids later rewiring.
Next, the electrician surveys the existing box. The survey checks for live, neutral and earth conductors, and whether the box can accommodate a larger fitting. If the box is undersized, a new back‑box is fitted before any connections are made.
| Switch Type | Typical Use | Key Wiring Requirement |
|---|---|---|
| Single‑pole | Single light or fan | Live and earth only |
| Multi-location | Hallway or stair lighting | Live, switched live, earth |
| Brightness-control | Living-room ambience | Live, switched live, earth; compatible load |
| Smart switch | Home automation | Live, neutral, earth; often needs a neutral |
Planning also includes checking local codes. For a full pre‑wire assessment, homeowners can consult Smart Home Electrician Brisbane , Faze Electrical & Airconditioning, which outlines the wiring layout for smart devices.
Step 2: Isolate the Circuit and Verify It Is De‑Energised

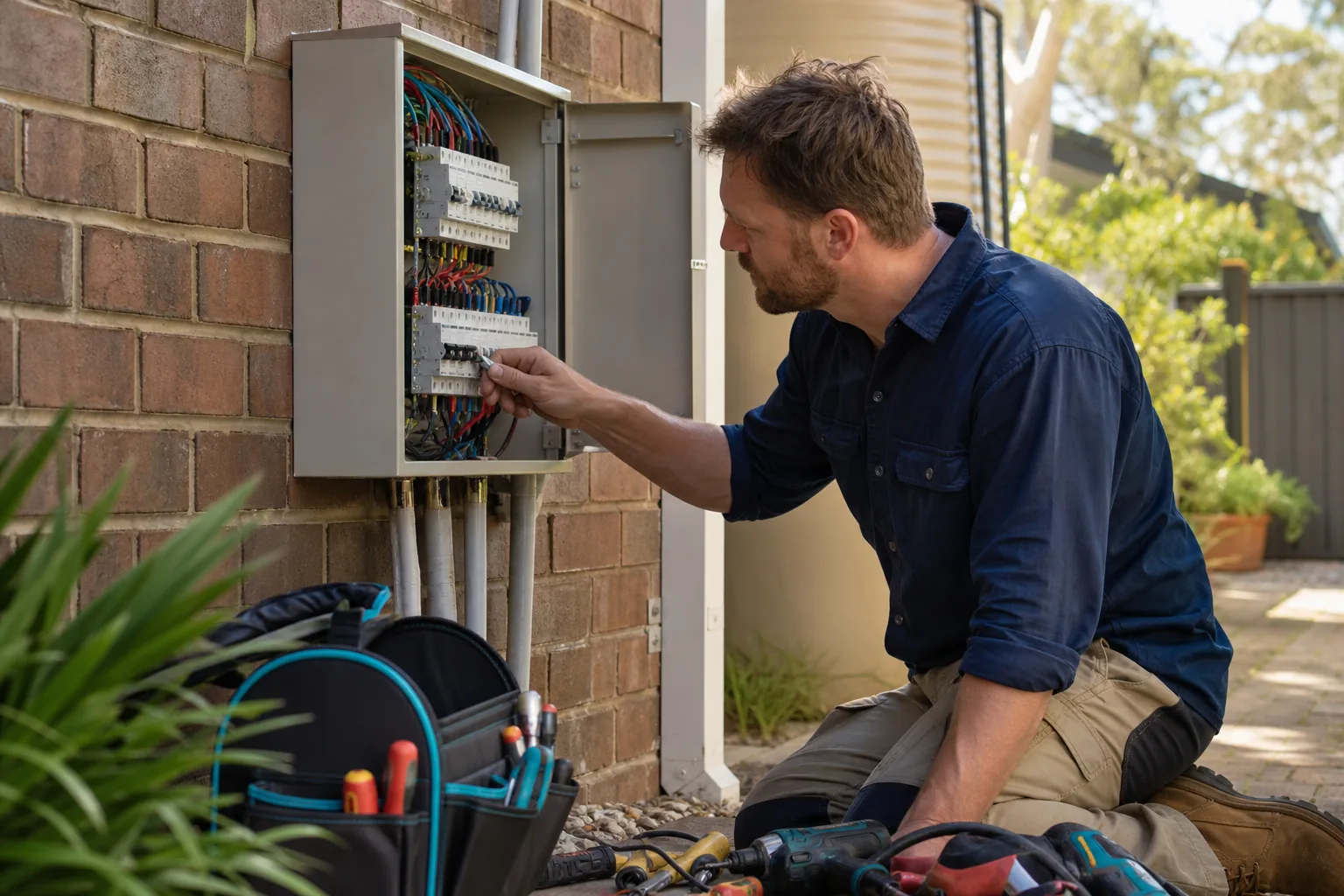

The electrician turns off the relevant circuit breaker at the consumer unit. A lock‑out tag is applied to prevent accidental re‑energising while work proceeds. This physical isolation satisfies the first safety clause of the Australian Wiring Rules.
Next, a voltage tester is placed on each exposed conductor. The tester must read zero volts before any wire is touched. If voltage remains, the breaker was not fully isolated or another source feeds the circuit.
Only after confirming the absence of voltage does the electrician remove the old switch. The removal is done with a screwdriver, taking care not to damage surrounding cables.
A live test should be performed after isolation and before any contact with conductors, and lock‑out/tag‑out procedures should be followed.
Step 3: Trace the Conductors and Confirm the Wiring Arrangement
With power off, the electrician follows each wire from the switch back to the ceiling rose or lighting fixture. Identifying the live (red or brown), switched live (often black), neutral (blue) and earth (green/yellow) ensures the new switch will be wired correctly.
If the existing wiring does not include a neutral at the switch location, a smart switch that requires neutral cannot be installed without pulling a new cable. In such cases, the electrician advises the homeowner on alternative devices that work without a neutral.
After mapping the conductors, the electrician marks each wire with colour‑coded tape. This visual cue prevents accidental swaps during connection.
For detailed guidance on tracing conductors, see the How to Test a Safety Switch: Step‑by‑Step Guide on Faze Electrical’s site.
Step 4: Install and Connect the Correct Australian‑Rated Fitting
The new switch is positioned in the back‑box and secured with the supplied screws. The live wire connects to the terminal marked “L”, the switched live to the “L1” or “L2” terminal, and the earth to the green terminal.
All connections are tightened to the torque specified by the manufacturer, typically 0.5 Nm for small terminals. Over‑tightening can strip the threads, while under‑tightening may cause loose contacts.
Australian standards require that every switch carry the AS/NZS 3000 compliance mark. This mark confirms that the fitting meets the minimum safety and performance criteria set out in the wiring rules.
Step 5: Test, Reassemble and Confirm Safe Operation
Before restoring power, the electrician gives the circuit one final visual inspection. All terminal screws are checked for tightness, and any stray wire ends are tucked neatly into the back‑box.

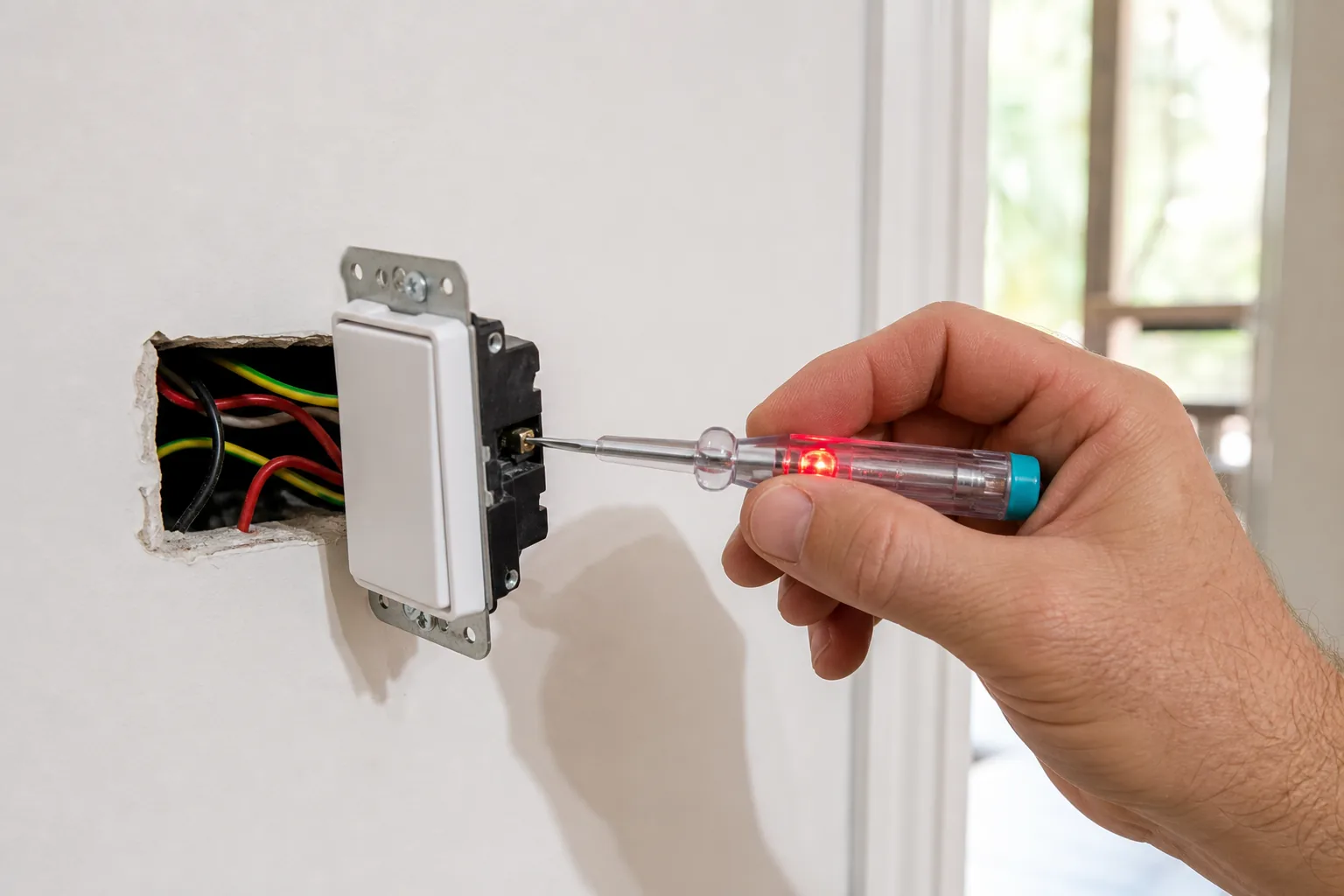

The circuit breaker is switched back on. A voltage tester is placed on the live terminal of the newly installed switch; it should now read the nominal supply voltage (typically 230 V). The tester is also placed on the switched live terminal while the switch is toggled; the reading should alternate between voltage and zero.
Finally, a functional test is performed by turning the connected light on and off. If a brightness-control device is installed, the electrician verifies its full operating range and checks for flicker.
Faze Electrical offers a free electrical safety inspection after any DIY work. This service checks that the installation complies with AS/NZS 3000 and that no hidden hazards remain. Homeowners can book the inspection through the company’s website.
For further assistance, the homeowner may refer to Top 10 Electrical Services to Fix a Flickering Light in 2026, which details how Faze Electrical resolves common post‑installation issues.
FAQ
Can I wire a light switch without turning off the breaker?
No. The first safety step is to switch off the relevant circuit breaker and apply a lock‑out tag. Working on a live circuit can cause electric shock or fire.
What colour wires should I expect in an Australian switch box?
Typical colours are brown or red for live, blue for neutral, black for switched live, and green/yellow for earth. Colour codes may vary in older homes, so tracing each conductor is essential.
Do I need a neutral wire for a smart switch?
Most smart switches require a neutral wire to power the module when the lamp is off. If a neutral is not present, the electrician can either run a new neutral cable or recommend a neutral‑free smart device.
How do I know if a brightness-control switch is compatible with different lamp types?
Check the switch’s compatibility information on the product label or data sheet. Different control devices suit different lamp loads, so confirm compatibility before installation.
When should I call a licensed electrician instead of DIY?
If any step requires altering existing wiring, adding a neutral, or if the homeowner is unsure about the wiring diagram, a licensed electrician should be called. In Queensland, only licensed electricians can perform work that complies with AS/NZS 3000.
For a safe and compliant result, follow the five steps outlined above and schedule Faze Electrical’s free safety inspection to verify that the new switch meets all Australian wiring rules.
