A TV can look clean and sit at the right height, but a loose bracket or hidden cable can cause serious trouble. This guide sets out the full installation sequence, while making clear which work must be handled by a licensed electrician in Australia.
Mechanical checklists often cover the bracket but miss electrical safety and local compliance. Faze Electrical can assess the wall, mount the TV and handle related electrical work across Brisbane and Australia.
Step 1: Choose the Location, Height and Mount Type
Good TV wall mount installation starts with the wall, not the drill. Set the viewing position before any holes are marked.
Stand or sit where the TV will normally be watched. In a lounge room, aim for the centre of the screen to sit close to seated eye level. A bedroom screen may sit higher because the viewer is lying down, but the viewing angle should still feel natural.
Check glare at different times of day. Windows, downlights and glossy furniture can reflect across the screen. Move a temporary cardboard outline or hold the TV box against the wall to test the position. Also check that doors, drawers and walkways won’t strike the screen.
Measure the viewing distance before choosing the final height. A regular television needs usable space between the screen and the seating position. A very large screen needs more distance. The screen should feel easy to view without repeated head movement.
Renters should get written permission before drilling. Property owners should also inspect the other side of the wall. A bathroom, kitchen or laundry behind the wall may indicate pipes or services that must be avoided.
Choose the mount type
- Mounting location: Find the right location for the TV, considering viewing angles, glare, eye-level height and viewing distance.
- Tilt mount: Useful when the TV sits above normal eye level. A small downward angle can reduce glare and neck strain.
- Full-motion mount: Suits rooms with more than one viewing position. The arm needs extra wall clearance and must be checked when extended.
Check the mount’s supported screen size and weight before purchase. Then confirm that the TV and wall mount use the same mounting-hole pattern. The matching mounting-hole pattern helps prevent forced or uneven bracket fit.
Faze Electrical is a sensible option when the planned position needs a new outlet, cable route or inspection of concealed services. The residential electrical service in Brisbane can be considered before wall work begins, rather than after the bracket has been fixed.
Stop here if the wall type, services or electrical plan is uncertain. A licensed installer should inspect the site before drilling.
Step 2: Gather Tools and Find the Wall Studs
For safe TV wall mount installation, the wall plate must reach sound structure. Plasterboard alone is not a suitable fixing point for most television mounts.
Read the mount instructions before opening the tool box. Hardware differs between kits, and the supplied bolts may suit one wall type but not another. Keep every washer, spacer and screw together until the correct parts have been confirmed.
Prepare the work area
- Stud finder with a centre-finding mode if available
- Spirit level, preferably longer than the level supplied with the mount
- Tape measure and masking tape
- Pencil for marks
- Drill pilot holes using a drill bit slightly smaller than the supplied screws
- Confirm the wall mount is rated to carry the TV’s weight
- Verify the TV and wall mount use the same VESA pattern
- Ensure the TV size falls within the wall mount’s supported range
Clear the floor beneath the work area. Remove fragile items from nearby shelves. Keep the TV unplugged. A second adult should be present for a large or awkward screen, even when the bracket appears light.

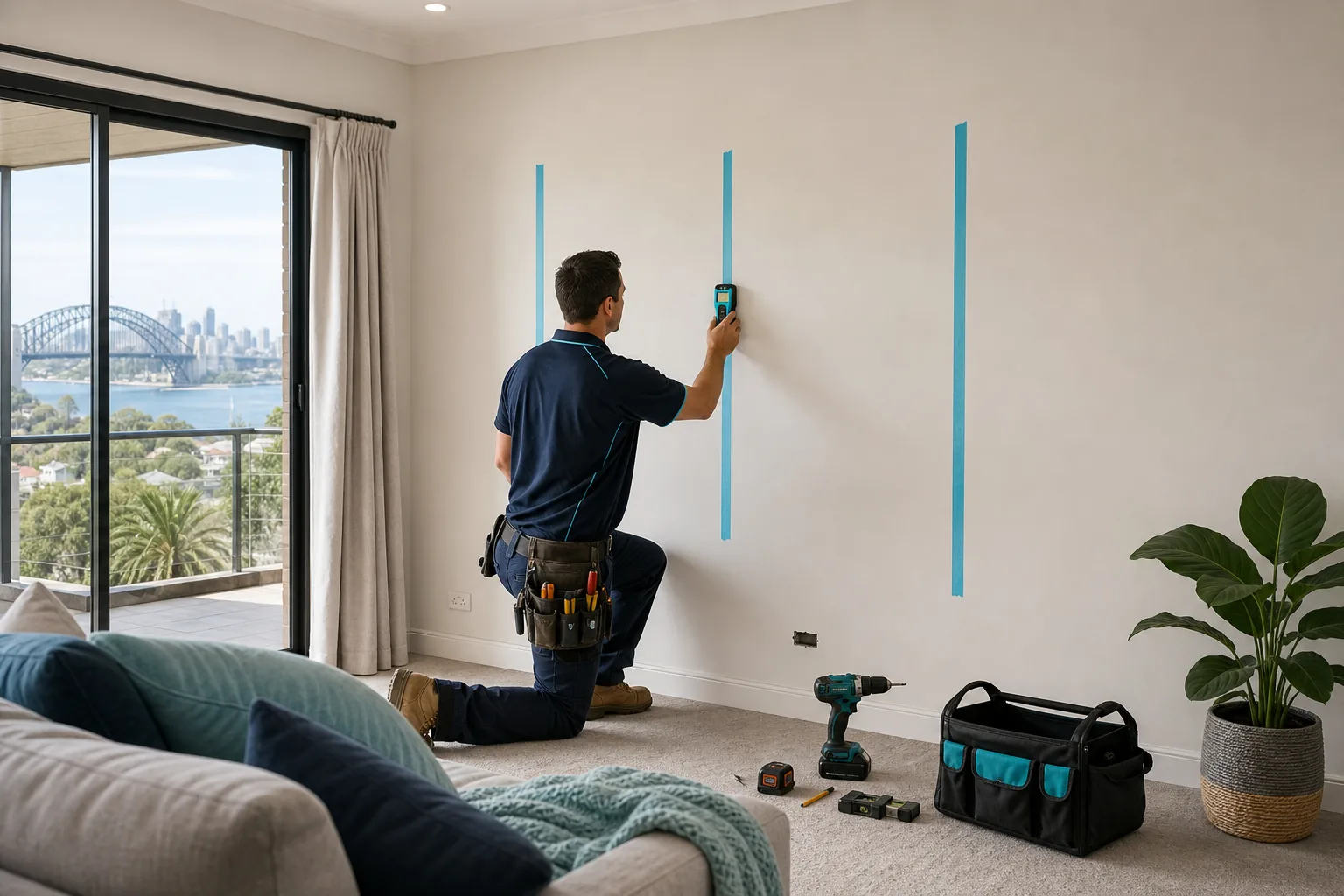

Find and confirm the studs
Move the stud finder slowly across the wall. Mark each edge of the detected stud with masking tape, then mark its centre. Do not trust one pass. Scan in both directions and confirm the centre with a second reading.
Timber studs are often spaced around 450 to 600 millimetres apart, although older buildings and unusual walls can differ. A 16-inch centre pattern is common in some construction, but it must not be assumed in an Australian home. Measure the actual wall.
Check for nearby power points, switches, data outlets and plumbing fixtures. These can indicate services or framing. Turn off power before any work near an electrical point, and do not drill where the service path is unknown.
Brick and concrete need a different fixing method. Metal studs also need a different load plan. A masonry anchor or another fixing method is not automatically safe for every bracket or screen. The wall material, fixing type and TV weight must be assessed together.
A checklist can name the next action without explaining whether the wall can carry the load.
When the stud position cannot be proved, stop the installation. Faze Electrical can inspect the wall and identify whether the proposed fixing method suits the building.
Step 3: Mark the Holes and Attach the Wall Plate
Accurate marks keep the plate level and spread the TV load across the intended structure. This stage of TV wall mount installation should be slow.
Use the mount’s paper template if one is supplied. Hold it against the wall and align its fixing holes with the centre marks on the studs. If there is no template, hold the wall plate in position and measure each hole from a fixed reference point.
Set the height again before marking. Measure from the floor to the planned screen centre, then account for the distance between the TV’s mounting holes and its top edge. A common error is to set the plate at the desired screen height without allowing for this offset.
Place a spirit level across the plate. Adjust the plate until the bubble is centred. Mark each hole with a sharp pencil. Recheck the marks after removing the template or plate.
Drill pilot holes
Select a drill bit slightly smaller than the supplied screws and drill pilot holes at the marked locations.
Make the pilot holes at the marked locations. Keep the bit aligned with the wall. Drill only to the depth required by the instructions. Stop if the bit meets unexpected resistance, metal or a service path.
Place the plate back on the wall. Fit a washer to each supplied fixing. Start the first fixing by hand, but leave it slightly loose. Add the opposite fixing, then check the level again before fitting the remaining fixings.
Tighten the fixings in stages. Work across the plate rather than fully tightening one side first. The plate should sit flat against the wall. It should not twist as the fixings reach their final tightness.
Do not replace the supplied fixings with ordinary plasterboard screws. Do not force a fixing that does not match the plate or wall fixing. If the supplied hardware does not suit the wall, pause and obtain the correct fixing advice.
The Australian installation guide supplied with the relevant mount should take priority over generic measurements. A professional can also check whether the wall needs additional support, especially for a heavy screen or a cantilevered full-motion mount.
Once the plate is secure, apply light hand pressure at several points. It should not shift, rock or pull away. This is only a preliminary check. It does not replace a load assessment.
For properties where the wall position affects a new outlet or data route, Faze Electrical can coordinate the electrical part before the plate hides the work area. The smart home electrician service in Brisbane is relevant when the TV forms part of a wider connected-home installation.
Step 4: Verify TV Stability in the Bracket
Gently push the TV to confirm it does not shift in the bracket.
Place the TV face down on a clean, soft surface. Do not place it on a bare floor or hard bench. Remove the stand or feet only if the TV instructions allow it. Keep the screen free from pressure.
Choose the correct hardware
Mount kits often include several screw sizes, washers and spacers. Test the screw by hand in the TV’s threaded hole. It should engage enough thread to hold the support firmly, but it must not bottom out inside the TV.
A screw that is too long can press into internal parts. A screw that is too short may not hold the support properly. Never solve a length problem by forcing the screw or using a power driver.
Use a spacer when the TV’s rear panel is curved, recessed or blocked by a connector. The spacer should sit squarely and leave the support stable. If the support rocks, the parts are not ready for tightening.
Read the support markings. Many rails have a top direction or release mechanism. Fit them with the hooks facing the wall plate in the direction shown by the mount instructions.
Start the upper screws first. Add the lower screws once the rail is aligned. Tighten each screw with a hand tool until it is firm. Do not crush the TV casing or bend the rail.
Check that both supports sit at the same height. Measure from the TV edge to each rail if the back of the TV allows it. A small mismatch can make the screen appear crooked, even when the wall plate is level.
Plan the connections now
Before the TV is lifted, connect cables that will be hard to reach later. Leave enough slack for the bracket’s movement, but avoid a loose loop that can catch behind the screen.
Take a photo of the cable route before the screen is raised. This can help with later fault finding or a future TV replacement. Label cables by device rather than by port colour if several connections look alike.
Check that the supports do not cover the power inlet, HDMI ports or ventilation openings. A full-motion bracket may need extra clearance when pulled forward.
A large screen should not be lifted by one person. Plan the lift, clear the path and agree where each person will hold the TV. The person at the wall should guide the hooks, not carry the full weight while searching for the rail.
If the TV is unusually heavy, the wall is not timber framed, or the rear fixing holes are damaged, use a licensed installer. A careful support fit cannot correct a wall or TV that is unsuitable for the chosen mount.

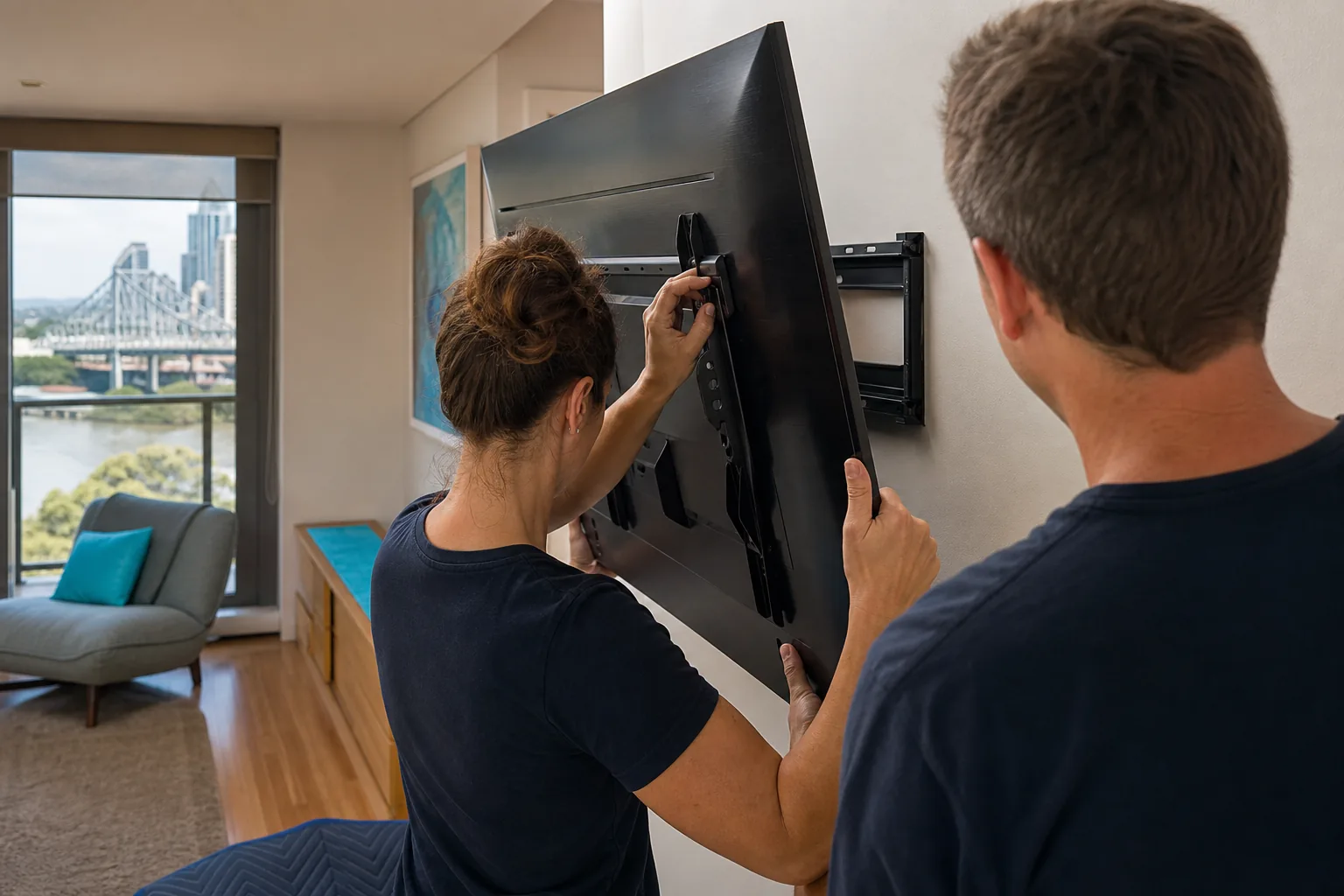

Step 5: Hang, Lock and Check the TV Safely
Hanging the screen is a controlled lift, not a final quick step. The hooks must sit fully on the wall plate before anyone releases the TV.
Use two people for a large screen. Lift with the screen held upright. Keep fingers away from the lower locking tabs and from the gap between the bracket and wall plate.
Move the TV towards the wall until the upper hooks meet the rail. Lower it slowly. Listen for the lock if the mount has an audible locking system, then check both sides rather than trusting the sound.
Fit the locking screws, clips or pull cords specified by the mount. Some systems lock automatically, while others need a separate fastener. Do not cut or remove a release cord because it looks untidy. Tuck it behind the TV only after the lock has been tested.
Apply gentle hand pressure to the top and sides of the screen. The TV should not lift, slide or shift sideways. A gentle check is enough. Do not pull hard on the screen to test the bracket.
Check the spirit level against a straight edge of the TV or bracket. If the screen is tilted, use the mount’s adjustment screws if provided. A full-motion arm should be checked when flat against the wall and again at the usual viewing angle.
If the TV looks tilted but the level says it is straight, inspect the room’s floor, ceiling and nearby furniture. Sloped surfaces can mislead the eye. Trust the measured position, then check the viewing angle from the main seat.
Connect the cables only after the mount lock is confirmed. Avoid putting body weight on the screen or using the screen as a handle. A bracket can be secure while the television itself is damaged by poor lifting.
Property owners should keep the mount instructions and note the fixing method used. A future installer may need to know whether the wall contains timber studs, masonry anchors or a reinforced section.
Step 6: Manage Cables and Complete the Electrical Safety Checks
Cable management finishes the appearance, but electrical safety must come first. A neat TV wall mount installation is still unsafe if a power lead is concealed in the wrong way.
Separate power from low-voltage cables
Route HDMI and other signal cables with enough bend room. Use a suitable cable-management method outside the wall. Do not pinch cables behind the mounting hardware, bend them sharply or leave them against a hot light fitting.
Never place a detachable appliance power lead or the TV’s detachable power lead inside a wall. These leads are not a substitute for permanent building wiring. An in-wall power route needs the correct cable, outlet arrangement and installation method for Australia.
Where a new power point is needed behind the TV, a licensed electrician should install it. The work may involve checking the existing circuit, wall cavity and access point. It may also require a different plan in a brick wall or a renovation with insulation and fire barriers.
Australian electrical work must follow the applicable state requirements and wiring rules. The basic distinction between flexible cords and fixed electrical wiring is important: a loose appliance lead must not be treated as permanent wiring inside a wall.
Faze Electrical can assess outlet placement, cable paths and related electrical work as part of a residential installation. The smart home installation service may also suit a TV that needs network cabling or integration with other home systems.
Run the final checks
- Confirm the TV is locked to the plate.
- Check that the mounting hardware does not move under light hand pressure.
- Make sure power and signal cables have no strain.
- Check that ventilation areas remain clear.
- Turn the TV on and test each connected input.
- Check the picture from the normal seating position.
- Confirm that the remote works with the TV in its final position.
Power-cycle the TV if a connected device is not detected. Switch through each input source. This can reveal a cable that is loose, trapped or routed to the wrong port.
Look behind the screen with a torch. A cable should not press against a sharp edge of the mounting hardware. Add protective covering or reroute it if the mount moves when the TV is tilted or extended.
Do not make a wall cut-out simply to hide a cable. A recessed outlet or compliant cable-routing method needs the right product and installation method. If the route is unclear, leave the cable visible temporarily and arrange an inspection.
FAQ
Can a TV mount go straight into plasterboard?
A TV mount should not normally be fixed to plasterboard alone. TV wall mount installation usually needs timber studs, suitable masonry fixings or a designed support system. The fixing method must suit the mount instructions and wall structure. A licensed installer should assess the wall when the studs cannot be confirmed.
How far apart are wall studs in Australia?
Australian wall studs are often spaced around 450 to 600 millimetres apart, but there is no safe reason to assume one pattern. Older homes, renovations and non-standard walls can differ. Use a stud finder, mark the edges, confirm the centre and measure between studs before drilling for TV wall mount installation.
What height should a TV be?
The screen centre should usually sit close to eye level from the main viewing position. A bedroom TV may sit higher because the viewer is in bed. TV wall mount installation should also account for glare, viewing distance, furniture and the mount’s tilt range. Test the position before drilling instead of relying on a fixed height rule.
Can a TV power cord go inside the wall?
A cord intended for connection to an appliance should not be concealed inside a wall. It is not permanent building wiring. A licensed electrician should install a suitable outlet or compliant electrical installation. This matters during TV wall mount installation because hiding the cord does not make an unsafe cable route compliant.
Does a large TV need two people to mount?
A large TV should be lifted by at least two people. One person can damage the screen or miss the locking rail while trying to carry and position it. During TV wall mount installation, plan the lift, clear the floor and check both hooks before releasing the screen. A professional team is safer when the TV is heavy or awkward.
Should an electrician install a TV wall mount?
An electrician should handle the job when it includes a new power point, concealed wiring or uncertain services. Mechanical mounting may look simple, but TV wall mount installation can involve wall structure, electrical paths and local compliance. Faze Electrical is an appropriate choice for Brisbane properties that need the mounting work assessed alongside electrical installation.
Conclusion
Use the six-stage sequence as a planning checklist, but do not treat it as permission to drill into an unknown wall or conceal power leads. For a safe, compliant result, arrange an assessment with Faze Electrical before the bracket is fitted, especially when the TV is large or the installation needs new electrical work.
